Lockheed HC-130J Combat King II History

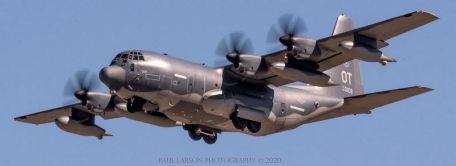

The Lockheed HC-130J "Combat King II" is a long-range Search and Rescue (SAR)/aerial refueling platform utilized by the United States Air Force (USAF) and is based on the modified KC-130J aerial refueler. It is intended as the successor to the HC-130P and HC-130N models and continues the popular line of high-wing transports begun with the classic Lockheed C-130 "Hercules" model. The Combat King II is used in the recovery of allied personnel through advanced onboard systems and robust Short Take-Off and Landing functionality as well as rough field operations.

First flight of a prototype was recorded on July 29th, 2010. Operational capability was achieved during 2013.

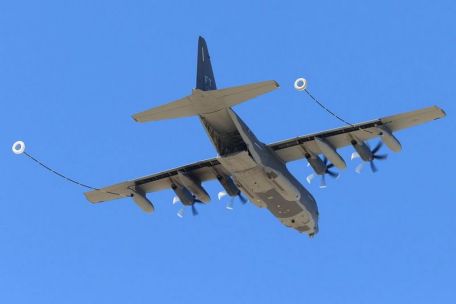

The Combat King II retains the same basic design arrangement as the C-130 and incorporates mission equipment for its given role. This includes an improved navigation system and onboard countermeasures suite while threat detection is also augmented from previous offerings. The aircraft is also plumbed to deliver fuel to other airborne elements and its cargo hold served in the airdrop role as directed. The HC-130J combines the services of the HC-130/MC-130 lines - both related to the original C-130 in a modern military end-product. It is typically operated in night time hours to minimize its profile against ground-based fire and launched missile threats.

Power for the model is served through 4 x Rolls-Royce AE2100D3 turboprop engines set in pairs across either wing element. Each engine produces approximately 4,590 shaft horsepower affording the aircraft an operating weight near 89,000lbs and a maximum take-off weight of 164,000lbs. Maximum speed is about 365 miles per hour with a range beyond 4,000 miles. Service ceiling is listed as 33,000 feet.

Dimensions include a wingspan of 132 feet, 7 inches, a length of 97 feet, 9 inches and a height of 38 feet, 9 inches. Payload capacity is 35,000lbs. A basic crew is five and includes two pilots, a Combat Systems Officer (CSO) and two dedicated loadmasters.

Lockheed HC-130J Combat King II Specification

BASICS

Year:
2013
Status:
Active, In-Service
Crew:
5

MANUFACTURING

[ 35 Units ]:
Lockheed Martin - USA

ROLES

- Aerial Refueling

- Transport

- Medical Evacuation (MEDEVAC)

- Search and Rescue (SAR)

DIMENSIONS

Length:

97.01 ft (29.57 m)

Width/Span:

132.55 ft (40.4 m)

Height:

37.99 ft (11.58 m)

WEIGHTS

Empty Weight:

89,067 lb (40,400 kg)

MTOW:

164,024 lb (74,400 kg)

(Diff: +74,957lb)

POWER

4 x Rolls-Royce AE2100D3 turboprop engines developing 4,591 horsepower each.

PERFORMANCE

Maximum Speed:

364 mph (585 kph; 316 kts)

Service Ceiling:

32,808 feet (10,000 m; 6.21 miles)

Maximum Range:

3,999 miles (6,435 km; 3,475 nm)

Rate-of-Climb:

1,830 ft/min (558 m/min)

ARMAMENT

None.

VARIANTS

HC-130J "Combat King II" - Base Series Designation
