Messerschmitt Bf 110 Zerstorer (Destroyer)

History

The name Messerschmitt is associated with many aircraft products during World War II (1939-1945) - the classic Bf 109 fighter, the Me 163 "Komet" rocket-powered interceptor and the Me 262 "Schwalbe" jet-powered fighter. Quickly came to mind. At the beginning of the war, together with the Bf 109, another classic model was named after the twin-engine, two-seater Bf 110. The Bf 110 became part of a German rearrangement and rearrangement in the 1930s, tracking time in one form or another using the twin-engine heavy fighter forms used by many national air forces at the time. Introduced in 1937, the Bf 110 received consistent service on all fronts involving the German army and its allies.

By the end of the war in 1945, total production had reached 6,170 units, and variants allowed the original design to evolve throughout the war years. While the Bf 110 became less and less efficient in day-to-day operations as the war progressed, it was eventually pushed into other roles better suited to its strengths.

Single-engine fighter jets have been the backbone of every major aviation service so far in the history of military aviation. However, when only a single engine is used, the range of use is always limited, which led to the idea of ??a twin-engine fighter design - a "bridge product" between a conventional fighter and a medium bomber. The twin-engine approach increases theater survivability and theoretically addresses operational range issues.

At the same time, a more powerful design could also be equipped with more machine gun, cannon and bomb firepower than a single-engine airframe could provide. This consideration gave rise to the "Schwere Jager", also known in some circles as the "Bomber Destroyer", a design that many countries were looking for in the 1930s.

The revived Luftwaffe took an interest in twin-engine heavy fighters, and in 1934 issued a specification from the Reich Air Ministry calling for long-range escort fighters in the form of heavy fighters??. The aircraft had to be equipped with an internal bomb bay for the transport of throwing weapons, had a twin-engine layout, provided a three-person cockpit, and had a modern all-metal construction.

While several companies showed off their various designs, the Messerschmitt prevailed over the competition, demonstrating more power, prowess, range and firepower than the closest challenger. Mobility is considered its weakest attribute.

Bf 110 Walking

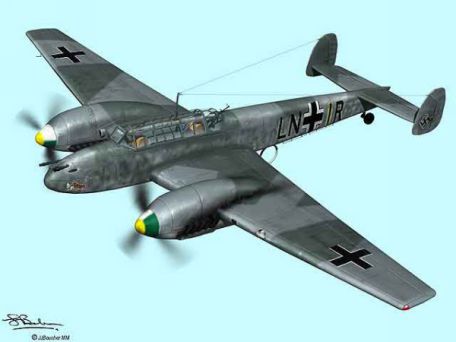

Messerschmitt's engineers built a robust, traditional-looking aircraft in their Bf 110 design. The monoplane's wings are low and mounted forward amidships, as is the cockpit for the two crew members (in a row), which is kept under a long-running "greenhouse"-style canopy that provides good visibility. With the engines housed in nacelles integrated with the wings, the front of the fuselage can be used for the cockpit, avionics and bow weapons. The interior of the fuselage adopts a semi-monocoque arrangement and tapers towards the rear due to its outer shape.

The tail is arranged with a separate vertical tail. Powerplant is 2 x Daimler-Benz DB 600A series in-line engines with typical "rear tractor" running gear installed.

Interestingly, the internal bomb bay was not part of the Bf 110's design, but was overlooked as the Messerschmitt approach was so promising.

Initial weapons were 4 x 7.92mm MG 17 machine guns and 2 x 20mm MG FF/M machine guns in the nose. The rear cockpit is equipped with a 7.92mm MG 15 machine gun to protect the aircraft's more vulnerable "six" position from trailing, intercepting aircraft.

The weapon was excellent for its time, as a short burst of fire could take down almost any aircraft the enemy could useespecially bombers flying in close formations. During the Bf 110's flying career, only minor changes to the armament were made - mostly to reduce weight or carry more mission gear.

A bomb-carrying capability was later added, which only helped expand the aircraft's tactical appeal in combat.

Return early

The first flight of the Bf 110 prototype took place on 12 May 1936, four pre-production aircraft were ordered, designated Bf 110A-0, the first arrived in January 1937. Once the design was finalized and officially accepted for production, serial production began, although there were issues with the proposed DB 600 engine, which meant reliance on the lower-power Junkers Jumo 210B engine at 640 hp (each) during the transition period.

Of course, this engine change affected the expected performance figures of the new aircraft, which cannot exceed 270 miles per hour. Later batches were equipped with Junkers Jumo 210G engines rated at 700 hp (each).

Model Bf 110B

It turns out that no final Bf 110A production model was available (the name was used for the pre-production aircraft), the initial production form became the Bf 110B, this consisted of three sub-variants with slight variations between them - Bf 110B-0 is the group's pre-production officer. The heavy fighter version is the Bf 110B-1, armed with 4 x 7.92mm MG 17 machine guns and 2 x 20mm MG FF cannons.

The Bf 110B-2 followed as a dedicated reconnaissance platform and replaced its artillery armament with camera equipment. The Bf 110B-3 was brought in as an improved trainer platform with armament replaced by an extended communications unit.

The overall output of the B model is limited until attention is shifted to the C model.

Model Bf 110C

It wasn't until late 1938 that the originally envisaged DB 600 engine was fitted to the Bf 110, which resulted in the first major production model of the 1938 Bf 110C - now with an increased top speed of 335 mph. The series was led by the required pre-production Bf 110C-0 model, followed by the Bf 110C-1 heavy fighter model. Then came the Bf 110C-2 with the FuG 10 series radio, while the Bf 110C-3 was a heavy fighter variant armed with a 20mm MG FF/M cannon, replacing the 20mm MG FF model used previously. The Bf 110C-4 provided enhanced armor protection in the cockpit, while the Bf 110C-4/B was a fighter-bomber version with a bomb carrier capable of carrying 550 lb dropped bombs while powered by DB 601Ba series engines.

The Bf 110C-5 is a reconnaissance variant based on the previous C-4 model, which lost its MG FF cannon to receive an Rb 50/30 camera unit powered by a DB 601P engine. The Bf 110C-6 played an experimental role with a 30mm MK 101 series gun mounted under the fuselage, while being powered by a DB 601P engine. The Bf 110C-7 was developed as a real fighter-bomber and is based on the C-4/B model.

Two centerline bomb racks were installed to carry 1,100 lb bombs, and the model was also powered by a DB 601P engine.

Model Bf 110D

At the end of 1939, the production Bf 110D was realized, this version tried to increase the range of the aircraft. The Bf 110D-0 was a pre-production model of the Bf 110D-1, with a ventral mount that accommodated jettable under-fuselage fuel tanks and under-wing drop tank mounts, resulting in the Bf 110D-1/R1 and Bf 110D-1/lead. R2: The Bf 110D-1/R1 is the standard form, the Bf 110D-1/R2 replaces the ventral fuel tank with a throwable fuel tank, and also uses the underwing drop tank. The Bf 110D-2 is a long-range heavy fighter/fighter-bomber variant with a pair of wing-mounted drop tanks with centerline bomb carriers.

The Bf 110D-3 is equipped with an extended tail to accommodate a Search and Rescue Ship (SAR) for pilot rescue at sea. Underwing drop tanks are typical of this designation, and bomb racks are optional for fighter-bomber missions.

The Bf 110D-4 is a long-range reconnaissance platform without the MG FF gun, with an Rb 50/30 camera and a pair of underwing fuel tanks.

Model Bf 110E

Entering 1941, the Bf 110 was extended to the Bf 110E model range, which was classified as a fighter-bomber - led by the pre-production Bf 110E-0. With the DB 601P engine, the Bf 110E-1 model leads the way, followed by the Bf 110E-2 with a lengthened rear hull for lifeboats.

The Bf 110E-3 became a long-range reconnaissance model with an Rb 50/30 camera instead of a gun.

Model Bf 110F

Then came the Bf 110F production model with the 1,350 hp DB 601F series engine. The additional power output allowed the aircraft to provide additional armor protection for the crew, and the fuselage was further strengthened. The Bf 110F-1 was a fighter-bomber form, the Bf 110F-2 was a long-range bomber-destroyer, the Bf 110F-3 was a reconnaissance aircraft, and the Bf 110F-4 was adapted for use as a night fighter.

On the latter, an antenna array is mounted on the nose, and the crew increases to three people. As the Bf 110 series began to fail in its original heavy fighter/destroyer role (especially during daytime operations), it re-emerged as a capable night fighter.

Bf 110G model

The Bf 110G was developed as an improvement to fill the void left by the phasing out of the Messerschmitt Me 210, the intended successor to the Bf 110 in service with the Luftwaffe. The G model features a DB 605B series 1,475 hp engine and some fuselage streamlining, as well as increased surface area of ??the rudder for improved control. The canopy has been slightly modified for the stern operator, and the bow armament has been improved.

The G prototype first flew in June 1942. There were no Bf 110G-1 models at the time, so production shifted to the Bf 110G-2, which filled the role of fighter-bomber and destroyer, and could also use air-to-air missiles.

The Bf 110G-2/R1 carries a massive 37mm B,K-37 cannon under the fuselage for a truly lethal bomber demolition capability. The Bf 110G-3 was a camera-equipped reconnaissance aircraft, and the three-seat Bf 110G-4 evolved into a night fighter with FuG 202/220 series radar systems.

The G-4's optional equipment is the "Schrage Musik" top-firing cannon weapon, which can be used against the more vulnerable undersides of enemy bombers.

Model Bf 110H

The Bf 110H was only in the design stage before being cancelled and became the last official production model of the Messerschmitt Bf 110 before the end of the war in 1945. It will build on the strengths of the G model series, considered the best of the Bf 110 series.

Bf 110 Carrier

In addition to the Luftwaffe, operators of Bf 110 aircraft include war allies Italy, Hungary and Romania. The Bf 110 was used by the Independent State of Croatia, and the British flew a captured Bf 110 for the Royal Air Force (RAF) 1426 flight - "RAFwaffe" - for evaluation.

Likewise, the Soviet Union flew an undisclosed number of captured Bf 110s during the war.

Operational Services

The

Bf 110 made a name for itself from the beginning of the war to the final days of the battle - such was its importance to the German cause in the many battles of World War II. In its first operation in September 1939, it was successfully used against Polish defenses. It was then used to conquer Denmark and Norway. In 1940, the Western campaign pushed the Bf 110 further into action, which helped link the Axis powers with the Belgian and French states.

Although the Bf 110 was widely effective in these early operations, when it was pushed into an escort role, it suffered losses as it fell prey to more nimble Allied fighters. During the Battle of Britain in 1940, the enemy killed around 30 Bf 110s in a single day, with casualties increasing.

After the Axis defeat of England, the Bf 110 fought further over the Balkans, and from there served as a close air support platform for the Afrika Korps in the pivotal North African campaign of 1941. She flew missions in the Mediterranean and Middle East to demonstrate the aircraft's operational capabilities in a variety of conditions. The Bf 110 was one of the available attack aircraft when Germany invaded the Soviet Union in June 1941.

Its last combat operation, defending Berlin and fighting night fighters, turned out to be heavy casualties of this type.
