North American F-100 Super Sabre

History of the North American F-100 Super Sabre

The North American F-100 Super Sabre was developed as the successor to another North American product, the F-86 Sabre. The F-86 Sabre proved to be the American war-winner in the Korean War, as it matched the new Soviet jet fighter - the Mikoyan-Gurevich MiG-15 "Fag" - with the North American P-51 Mustang that had successfully fought against Germany and enemy of Japan. To date, the North American aviation industry has made an impressive history by delivering these successful designs through changing times.

The F-100 Super Sabre was no exceptionit was an in-house development submitted to the U.S. Air Force and eventually accepted for service.

The plane was built when aeronautical engineers were convinced that sustained flight at speeds above Mach 1 was possible - military pilot Chuck Yeager broke the sound barrier in his Bell XS-1 a few years ago - and now The challenge was a Mach 1 design that could be paired with a consistently powerful turbojet. The Soviet Union and its Mikoyan Gurevich office were also hard at work, starting development of what would eventually become the MiG-19 "Farmer" -- effectively a contemporary of the F-100 Super Sabre -- although the two aircraft never competed with each other.

The F-100 was affectionately called the "Hun", no doubt because of its "F-100" designation (Hun-dred).

Origins

In early 1949, North American Airlines was working on the idea of ??Mach 1 endurance flight as an in-house development. The success of the F-86 Sabre lies in multiple sources, most notably aerodynamic documents captured from Germany after World War II and advanced testing by the National Advisory Committee for Aeronautics (NACA).

These, combined with true aeronautical engineering, began to push the cusp of military aviation design to a whole new frontier. Changing times and advanced technology after World War II into the 1950s made endurance flight at Mach 1 more achievable.

The North American company looks at the achievements inherent in the F-86 Sabre design in an attempt to produce a worthy successor compatible with the evolving battlefield. The Sabre's 35-degree wing sweep was developed with an improved fuselage to a larger 45-degree angle. This design line led to a better fighter concept, but inevitably hit an upper limit, requiring the use of powerful engines to consistently break through the airframe and exceed the Mach 1 threshold.

After considering several turbojet developments, the GE-branded Afterburner J47 was selected and paired with the F-86D Dog Sabre (a successful Korean War jet with a recognizable "nose" nose assembly) all-weather version of the fighter) pairing. The U.S. Air Force proposed and rejected this design.

A modified F-86E followed, but was rejected again. A third draft was submitted for consideration - a combination of the first and second drafts submitted - and was eventually accepted for further development.

Perhaps most importantly for the Super Sabre - given its introduction into a Cold War-dominated world - the aircraft is capable of carrying and launching missiles with nuclear warheads. Approved types include B28, B43, B57, B61 and MK7 ammunition.

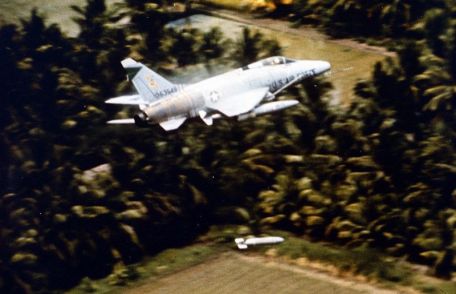

Both D and F models use the Low Altitude Bombing System (LABS). Essentially, this allows the Super Sabre to "hurl" ammunition at the target. The F-100 can fly through trees at high speed, then immediately pull up to fire itself.

As the aircraft continues to advance, falling munitions follow their gravitational path or trajectory towards the target.

Some F-100 Super Sabres appeared in the "ZEL" (Zero Length Launch System) program, test aircraft via rocket-assisted launch. The aircraft will be stationed in all NATO countries in Europe and will be part of the initial response to an impending Soviet invasion.

Since Soviet air-launched nuclear missiles gave NATO air forces a limited opportunity to launch their aircraft, the program was seen as a prerequisite, although for some reason it never fully materialized.

Services

In addition to serving in the U.S. Air Force, the Super Sabre has become a relative favorite among its NATO partners and U.S. allies. Operators include Denmark, France, Turkey and Taiwan. A total of 2,294 F-100 Super Sabres were produced, including two YF-100A prototypes.

These models only include the A, C, D, and F model series, but are generally similar. Production of all F-100 Super Sabres ended in 1959.

Probably the largest combat use of the F-100 Super Sabre was in the F-100F "Wild Weasel" form during the Vietnam War, which spanned from 1966 to 1971. Wild weasel is a generic term that is still in use today to associate each fighter jet with its own dedicated radar destruction role. So you can play the role of the F-4 Phantom in Wild Weasel, just like the F-100 Super Saber was shown in Southeast Asia.

In addition to their anti-radar role, the Super Sabres can also perform air superiority, fighter-bomber and reconnaissance roles when needed. Overall, the Super Saber completed more conflict operations than the P-51 Mustang throughout World War II.

Soviet-made surface-to-air missile (SAM) elements are scattered over northern Vietnam, posing a threat to all U.S. pilots on duty. The F-100F Wild Weasel is a modified version of the F-100F two-seat trainer with a two-person cockpit ideally suited to the Wild Weasel's capabilities, which require the use of a pilot and a radar system operator.

In addition to the SAM, American pilots had to deal with AAA (anti-aircraft guns) and interceptors in the form of MiG-17 "Farmers" and MiG-21 "Fishbeds".

These F-100Fs have no problem adding special equipment, and the actual capabilities are impressive. The operator in the back seat will locate the given radar signal and bring it back to the origin. The pilot can then "mark" the area with the missile so that oncoming fighter-bombers can target them.

With the development of the AGM-45 Shrike anti-radar missile, the role of the Wild Weasel effectively shifted to the Republic F-105 Riesling and McDonnell F-4 Phantom. The F-100 Super Sabres spent their days in the Vietnam conflict as a Forward Air Control (FAC) aircraft, individually known as the "Mist".

The Super Sabre also served with the USAF Thunderbird Demonstration Team, which continued to improve its F-100 variant as newer forms emerged. One notable loss of the aircraft occurred in 1967, when the wing of the airborne Super Sabre crashed into the fuselage, spilling fuel and bursting into flames.

Although it was surprising that the pilots were brought to safety, the incident caused some concern in the U.S. Air Force and the North American aviation community, which made some changes in the production process of the F-100D series.

As mentioned earlier, the F-100 Super Sabre was on display in all NATO countries, which meant that many were stationed across Europe to counter any Soviet aggression. The U.S. Air Force discontinued the F-100 in 1972.

The Air National Guard continued to use the model until 1980, and at least one foreign operator continued to fly the aircraft in 1985a true testament to the aircraft's design.

Conclusion

The F-100 Super Sabre is indeed a true American fighter jet, preceded by the P-51 Mustang and the F-86 Sabreall well-known designs in North American aviation. It was a groundbreaking design that set records when technology effectively pushed the limits of speed. The aircraft was the first system of its kind in the world to reach Mach 1 in level flight, and it did so consistently, months ahead of the Soviet MiG-19. The F-100 is not without its flaws, and the fact that lives were lost during its development shows that understanding of flight speed limits is still in its infancy.

Ultimately, the F-100 Super Sabre proved its worth - with all the manpower, time and money invested in its design - becoming a highly recognizable and respected aircraft, and possibly a North American Airlines fighter jet design The pinnacle of work.
