PZL p. 37 History of Los Angeles

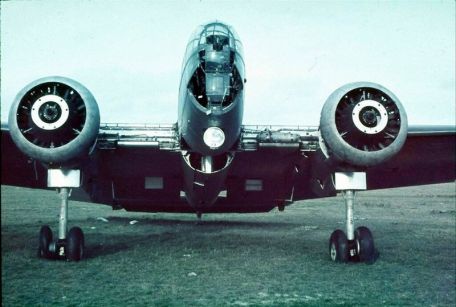

Poland before World War II (1939-1945) was not without aviation. In fact, the PZL dominated the Polish Air Force from 1928 to 1939, and some of its products were used to defend Poland during the German invasion of September 1939. The PZL P. 37 Los ("Moose"), a medium bomber in a twin-engine configuration, was one of the contributors to this failed mission. More than 120 samples of this type were produced, some of which actively fought against the Axis powers in the follow-up battles in the early days of World War II.

Production time span from 1938 to 1939. The captured prototype was later taken over by the Romanian Air Force. These prototypes were in use until 1944. The Germans also tested two samples captured, and the Soviets evaluated three samples.

Medium bombers were well known prior to World War II for their ability to deliver a viable bomb load at a range at a viable speed. The Poles understood this and invested in the type, just like any other air power at the time. P. 37 stems from work begun in the mid-1930s under the direction of Jerzy Dabrowski. As early as December 13, 1936, the prototype was ready for its maiden flight.

When it entered service in 1938, the P.37 was hailed as one of the most advanced bomb platforms in the world.

The final production model became the P. 37B (I/II) with twin tails and PZL Pegaz XX series air-cooled radial piston engines, each producing 970 hp.

The P.37C and P.37D were proposed versions of the Gnome-Rhone 14N-01 and 14N-21 engines respectively - neither were produced. The P. 49 Mis was another bomber variant proposed based on the P. 37, but only an incomplete prototype was built due to the German invasion that halted its development.

During the war, the bomber served with the 10th and 15th Bomber Squadrons of the Polish Air Force. Deliveries began in early 1938, but limited engine supplies meant durability was difficult to achieve. By the time Germany invaded Poland in September 1939, about 86 men were on standby in defense, although less than 50% actually served in the ensuing battle. During bombing raids, the bombers were airborne with lower bomb loads than expected because they took off from unprepared airfields, which limited their tactical and strategic value. As the invasion progressed, the series suffered from a lack of combat escort - which made these large targets prey for German pilots.

Before the end, about 25 stockpiles were airlifted to Romania, where they were buried by local authorities (and served in the Romanian Air Force until mid-1944). About 30 P. 37 bombers were destroyed by the Poles before they were captured by the Germans.

P. 37's planned pre-war customers included Belgium, Bulgaria, Greece, Spain, Turkey and Yugoslavia.

Specification

Basic

Year:
1938
Status:
Retired, out of service
Staff:
4

Production

[120 units]:
Panstwowe Zaklady Lotnicze (PZL) - Poland

Roles

- Ground Attack

Dimensions

Length:

12.95m

Width:

17.95m

Height:

16.73 ft (5.1 m)

Weight

Curb Weight:

4,280 kg

MTOW:

20,073 lbs (9,105 kg)

(difference: +10,637 pt)

Performance

2 x Bristol Pegasus XX radial piston air-cooled engines, each producing 970 hp, driving a three-bladed propeller unit.

Performance

Maximum speed:

256 mph (412 km/h; 222 knots)

Service Limit:

22,966 ft (7,000 m; 4.35 mi)

Maximum range:

1,616 miles (2,600 km; 1,404 nautical miles)

Rate of climb:

282 m/min

Armor

Default:

1 x 7.92mm machine gun mounted on a trainable base.

1 x 7.92mm inverted machine gun mounted on a trainable mount.

1 x 7.92mm machine gun in the ventral position of the trainable mount.

Optional:

Traditional outlet stores holding up to 5,690 pounds in-house.

Changes

Page 37 - Base Series Names

p. 37/I - first prototype; single-wing tail.

p. 37/II - Second prototype; double-fin tail.

p. 37A - Production model; monoplane tail; equipped with Bristol Pegasus XIIB engines; completed 10 examples.

p. 37Abis - Twin-fin tail unit; 19 examples completed.

p. 37B (I/II) - Twin fin tail unit; installed PZL Pegaz XX series engine.

p37C - Proposed model with 2 Gnome-Rhone 14N-01 engines.

p. 37D - Proposed model with 2 x Gnome-Rhone 14N-21 engines.

p.49 'Mis' - Proposed advanced bomber form; incomplete prototype.
