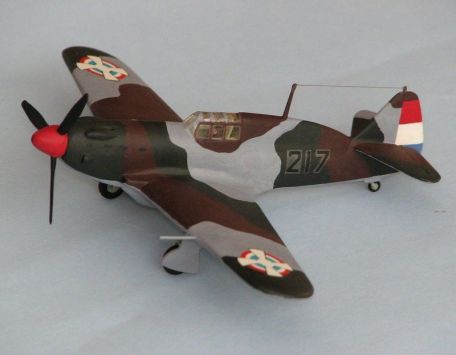

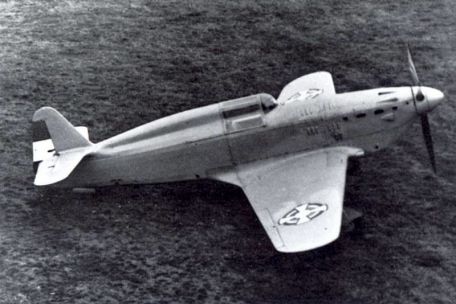

History of Rogozarski IK-3

When discussing a range of topics related to WWII aviation, the development of lesser-known militaries such as Yugoslav states is often overlooked. In the years following World War I, biplanes were the "kings of the sky" until the advent of metal monoplanes in the following years. Gone are the days of open-air cockpits, fixed positions, splash gear legs, and strut-supported high wings.

In its place were the sleek designs that dominated the air combat of World War II - notable among these early contributors were the British Hawker Hurricane and Super Sea Spitfire, as well as the German Messerschmitt Bf 109. For the Yugoslav aviation industry, the change in global aviation technology did not go unnoticed, as the final development work began on a comparable and powerful fighter.

Development of a new "modern" fighter aircraft began as early as 1933. Indigenous efforts have produced the first all-Yugoslav "IK-1" series fighter - a high-wing fixed-gear monoplane - which is believed to have been greatly developed in the upcoming "IK-1"3" Tests of improvements.

Completed in 1936, when the program was evaluated by the military. Military scrutiny undoubtedly led to costly delays in the design of modern fighter jets, as opponents were reluctant to deviate radically from accepted norms. Independently, one was ordered in 1937 A prototype was built and an assembly line was established at the Rogozarski factory in Belgrade.

Hence, the aircraft was called "Rogozarski IK-3", although the design was the work of two engineers - Ljubomir Ilic and Kosta Sivcev, who were early IK-1s The founder of the brand.

During the Axis invasion, only 6 IK-3 fighters were in operational condition and these variants were tested. In practice, given the circumstances, the aircraft performed quite well. The IK-3 is known for its maneuverability, handling, flight characteristics and reasonable firepower.

The reliability and inherent power of the engine proved to be reliable even in strong combat with the Luftwaffe. It is said to have knocked down as many as 11 enemies in battle, a testament to the Yugoslav design and the skill of the pilots. Despite heroic attempts to defend the homeland, the Yugoslav Air Force proved unable to match the numbers, experience and tactics of the Axis powers.

The invasion ended on April 17, 1941 with the surrender of the Yugoslav army - effectively the end of Yugoslavia as a state itself. Croatia took its place, and the rest of the regions that made up the former state were divided up and occupied by the victors until "liberated" by the Soviet Union in 1944.

Only two IK-3 fighters survived the invasion until the end of the battle. However, the Yugoslav personnel did not leave the technology in the hands of the enemy, but arranged for their destruction.

The remaining 25 IK-3s on order were only half-complete when Yugoslavia disintegrated, marking the end of the Rogozhsky IK-3's short useful life. If the Axis invasion never interrupted development, Yugoslav engineers also considered more powerful engines.

The post-war Icarus S-49 was developed from the pre-war IK-3, with a total of 158 produced, the first fighter developed in post-war Yugoslavia.

Specification

Basic

Year:
1940
Status:
Retired, out of service
Staff:
1

Production

[12 units] :
Ikarus AD/ Rogozarski AD - Yugoslavia

Roles

- Fighter

Dimensions

Length:

27.49 ft (8.38 m)

Width:

10.33m

Height:

10.60 ft (3.23 m)

Weight

Curb Weight:

1,874 kg

MTOW:

2,400 kg

(difference: +1,160 pt)

Performance

1 x Avia (Hispano-Suiza) 12Ycrs V-12 liquid-cooled 920 hp engine.

Performance

Maximum Speed:

327 mph (526 km/h; 284 knots)

Service Limit:

26,247 ft (8,000 m; 4.97 mi)

Maximum range:

311 miles (500 km; 270 nmi)

Armor

Default:

1 x 20mm Hispano-Suiza HS-404 gun mounted in the propeller hub.

2 x 7.92mm FN Browning machine guns located in the upper forward fuselage.

Changes

IK-3 - Basic series name
