Martin Model 201

Martin Model 201 History

During World War II (1939-1945), the Allied propeller fighters reached their peak, when air support using engines became particularly important over Rome, Berlin and Tokyo. These versatile machines are in high demand and need to deal with all types of ground targets - trains, warehouses, ships, etc.

For the United States, there has been no shortage of successful designs, including the classic Douglas A-26 Intruder twin-engine attack aircraft and modifications to successful models such as the North American B-25 Mitchell, another twin-engine type.

The United States Army Air Forces (USAAF) formed a massive strike group centered on a twin-engine model supported by multiple aircrews and extensive weapons support. As the war began in early 1939, the need for raiders evolved to the point where new designs were considered.

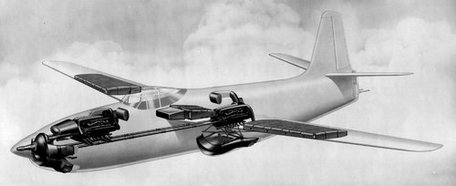

In mid-June 1943, the Glen L. Martin Company, familiar with successful aircraft designs, drew up plans for a new USAAC attack aircraft, the "Type 201", at the heart of which was the twin-engine concept that would allow two engines to work in tandem - this was in the nose A pair of four-bladed propellers are reverse driven.

This arrangement brings some inherent design advantages, as the wings do not need to support a dedicated engine nacelle structure, freeing up these elements for other important components, such as weapons. Additionally, this reduces drag along the forward area of ??the aircraft (i.e. a smaller profile), which has the potential intrinsic benefit of improving performance, while allowing additional internal volume for fuel reservoirs (consisting of self-sealing fuel tanks, over "wet wings" ).

Engines of choice were 2 Allison V-3420 liquid-cooled inline-piston engines, 2,850 hp each, and the experimental system first ran in 1937 and later powered the short-lived Fisher P-75. "Eagle" during World War II. These large and powerful units will provide the aircraft with considerable power to power its twin-propeller array and ensure the high-speed operation of this rather advanced mid-sized platform.

Specification

Fundamentals

Years of Service

1943

Origins

United States

Status

Cancel

Development ended.

Crew

3

Production

0

Manufacturer

Glen L. Martin Company - USA

Carrier

United States (removed)

Roles

Ground attack (bombing, strafing)

The ability to conduct air strikes against ground targets using (but not limited to) artillery, bombs, rockets, rockets, etc.

Disable support (CAS)

Designed to operate near active ground elements with a wide range of air-to-surface weapon and ammunition options.

Special Mission: Anti-ship

Equipped to find, track, and attack enemy surface elements through visual acquisition, radar support, and ship-based weapons.

Intelligence Surveillance Reconnaissance (ISR), reconnaissance

Monitor ground targets/target areas to assess surrounding threat levels, enemy strength, or enemy movement.

X-Plane (development, prototype, tech demo)

Aircraft designed for prototyping, technology demonstration, or research/data collection.

Dimensions and Weight

Length

63. 3 feet

(19.30m)

Width/span

77.9 feet

(23.75m)

Cured weight

22,046 lbs

(10,000 kg)

MTOW

40,267 lbs

(18,265 kg)

Wgt Difference

+?18,221

(+8,265 kg)

Performance

Installed:

2 x Allison V-3420 liquid-cooled inline piston engines, each producing 2,850 hp and counter-rotating a pair of four-bladed front-mounted propeller units.

Maximum speed

426 km/h

(685 km/h | 370 knots)

Maximum

22,999 feet

(7,010 m | 4 km)

Area

2,740 km

(4,410 km | 8,167 nautical miles)

rate of climb

3,100 ft/min

(945 m/min)

Range (MPH) Subsonic: < 614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hypersonic: 7673-19180 | Reentry: > 19030

Weapon

Recommended, fixed: 12 x .50 caliber Browning M2 Heavy Machine Guns (HMG) on wings (six per wing) or 6 x 20mm automatic cannons on aircraft Wings (three per wing). 2 x .50 caliber Browning M2 HMG in power tail turret. Proposed, optional, variable: 18 x underwing air-to-surface missiles. 1 x 4,000lb drop bomb in internal bay.

4 x 1,000 lb drop bombs in inner bay. 6 x 500lb drop bombs in inner bay. 15 x 100lb drop bombs in inner bay. 2 x Mk 13-2 torpedoes in the internal bomb bay.
