Airbus Helicopters UH-72 Lakota

Airbus Helicopters UH-72 Lakota History

The Airbus Helicopters UH-72 "Lakota" Light Utility Helicopter (LUH) was introduced with U.S. military forces in 2007. The aircraft became an offshoot of the Army's LHX (Light Helicopter, Experimental) program of the 1980s which also produced the since-cancelled Sikorsky RAH-66 "Comanche" light attack / reconnaissance platform. With the cancellation of said system, some of its remaining funds were reinvested to form a light utility model which became the UH-72. The UH-72 platform is based on the existing Eurocopter EC145 model introduced in 2002. Since production of the UH-72 began, some 300 examples have been delivered. Assembly is through Airbus Helicopters (formerly American Eurocopter) and the Lakota now serves the U.S. Army and Navy.

The adoption of the EC145 by the U.S. Army marks the first time it has procured a civilian market-borne helicopter platform for military service. The move was logistically-based, allowing for far lower overhead by utilizing an existing, proven system with off-the-shelf parts capability. It is intended as a replacement for the Bell OH-58 "Kiowa" series of light helicopters as well as the venerable Bell UH-1 "Huey" medium transport models.

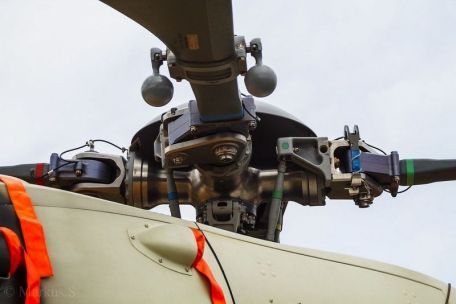

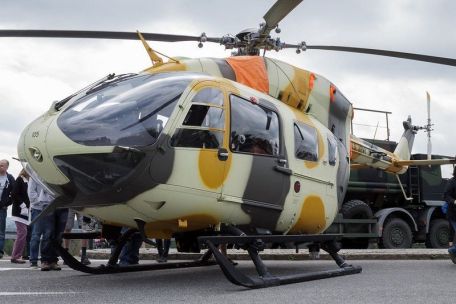

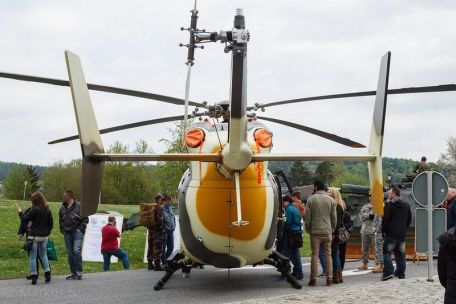

The Lakota takes on a decidedly European look with its well-rounded body and heavily-glazed frontal section. Cockpit and cabin windows are large for increased situational awareness. A typical crew is two and passenger seating can be for up to eight or two medical litters (the latter in the MEDEVAC role). Access to the cabin is ample as the raised tail stem allows a "clamshell" style door assembly to be fitted along the aft fuselage. Additionally, there are sliding side doors for conventional entry / exit. The helicopter makes use of landing skids as opposed to more complex retracting wheeled landing legs. The main rotor sits close atop the cabin roof with an unprotected tail rotor fitted along the portside of the tail fin.

Power is served through 2 x Turbomeca Arriel 1E2 turboshaft engines developing 738 shaft horsepower each while driving a four-blade main rotor and two-blade tail rotor. Performance includes a maximum speed of 167 miles per hour with a cruising speed near 155 miles per hour. Range is out to 425 miles and service ceilings peak around 18,000 feet. Rate-of-climb is 1,600 feet per minute. Dimensions include a length of 42.6 feet with rotor diameter of 36 feet and height of 11.8 feet.

Operators beyond the U.S. Army and Navy now include Thailand which has six systems on order (2015). Another nine units were announced for procurement by the Southeast Asian nation.

Variants include the UH-72A which is the militarized form of the EC145 model. The UH-72B is being proposed as an upgraded A-model based on the newly arriving EC145 T2 model featuring uprated engines and upgraded avionics with new Fenestron shrouded tail rotor. The AAS-72X is another proposed mark as an armored light attack platform to replace the armed Bell OH-57D Kiowa Warrior in the same role. The AAS-72X+ is similar in product goal, though based on the newer EC145 T2 product model.

The U.S. Army is planning to field some 187 total Lakota helicopters as part of a new training program that already features fifty of the aircraft in 2015. These are replacing outgoing Bell TH-67 (Model 209) light helicopters in the same role. Sources also state a U.S. Army grand total of 338 Lakota helicopters and a United States Navy grand total of five helicopters.

Airbus Helicopters UH-72 Lakota Specification

BASICS

MANUFACTURING

ROLES

DIMENSIONS

WEIGHTS

POWER

PERFORMANCE

ARMAMENT

VARIANTS

COCKPIT
