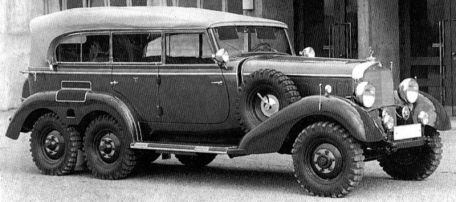

Daimler-Benz G4

History

Although it was used as a general staff vehicle and was the centerpiece of many military parades fueled by Hitler's propaganda, the Daimler-Benz G4 vehicle was officially classified as a "heavy crew vehicle". Hitler himself liked the big G4 series, as the car stood out for its long travel length and sturdy six-wheel arrangement. Although designed to be used off-road, the G4 actually doesn't have all-wheel drive on its six wheels, only the rear axle (with two self-locking differentials) is connected that way, and the front axle isn't in the equation.

As a result, the G4 generally suffers in off-road driving, especially in off-road operations where the vehicle's enormous weight and bulky dimensions have a solid impact on the driver. In any case, Hitler was keen to use it "after the war" when he was touring the battlefield or arriving in stressed troop areas for a morale visit.

When not in use, these special government G4s are stored in various locks owned by the Fuhrer.

The G4 started production at Daimler-Benz in Germany in 1934 and continued until 1939. The vehicle is offered in two different versions for its intended display role - the first is a ceremonial display and the second is a high profile display. Ranked passenger. The former comes in a glossy light grey finish and comes with black fenders and matching black pedals.

The latter is delivered as standard in a matte grey military finish. Both versions feature a foldable soft-top to protect occupants from the elements, as well as solid glass windows. The cover folds conveniently into place on the rear upper edge of the frame. A hardtop version of the car was also produced, both as a "radio car" as a communication tool and as a "luggage cart" for Hitler's personal entourage when traveling.

Some versions also lack the rear passenger side window.

The layout of the G4, despite its unorthodox appearance, is very traditional. The engine is housed in the front compartment and is mated to a four-speed manual transmission system that drives the rear wheels.

The driver is located in the front left and is steered by means of a conventional large-radius steering wheel element. Both seats lean forward against car-style doors that open back for easy entry and exit.

The rear occupants have two sets of seats and a set of doors that are hinged at their leading edges to open forward in a conventional fashion. The pedals line the sides of the vehicle under the doors, forming an elegant silhouette with the front and rear fenders. Power comes from an air-cooled 8-cylinder in-line engine of the Daimler-Benz M24 or M24 II series, displacing 5.0 or 5.4 liters and producing up to 110 hp at 3,400 rpm.

Road speed is rated at approximately 42 miles per hour, while operating weight is approximately 3,700 kg (8,154 lb). Round headlights at the front of the vehicle facilitate nighttime driving and are mounted on either side of the engine grille inside the front fenders. Chrome is used for detailing purposes throughout the vehicle design.

Spare wheels are mounted on brackets on either side of the frame, just in front of each front door.

When it was known that the leader liked the G4 as his personal official car, the subordinate soon followed suit, asking the G4 to do a tour of his own as a statement to the "minor" crew by the performer. However, fewer than 150 G4s were produced, making them extremely rare, with total production varying between 57 and 131 units, depending on various sources. It is reported that Daimler-Benz has produced only one luggage cart and one radio cart.

Of course, its presence in today's military collections is a find in every way.

Some G4s, especially those used as escorts when transporting senior VIPs, can be armed with one or two 7.92mm general purpose machine guns for self-defense. This could be an early war-era MG34 series, or a belted machine gun of a later MG42 model mounted on raised "stick" trunnions.

The front trunnions are mounted behind the front seats, while the rear trunnions are mounted behind the last set of seats. Combined, this basically allows a 360-degree fire field, but not much protection for riflemen.

Specification

Basic

Roles

Dimensions

Performance

Performance

Armor

200 x 7.92mm ammo (when equipped with a machine gun).
