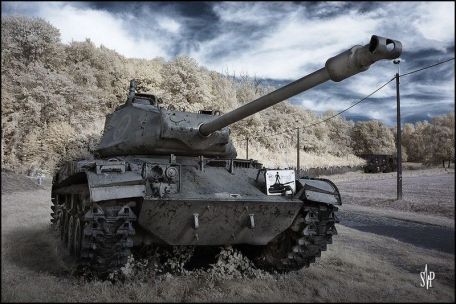

M41 Walker Bulldog

1951 COLD WAR KOREAN WAR MODERN VIETNAM WAR

History of the M41 Walker Bulldog

The M41 was designed and developed as a direct successor to the WWII M24 Chaffee light tank. The M24 played an important role in the war, but its main gun soon proved quite ineffective against the more powerful German tank designs of the later period, so its tactical range was inherently limited.

After the war, the fabled Soviet T34 medium tank became the main enemy of the U.S. Army, armed with an 85mm main gun. In 1949, design work began on a new air transport light tank with better armament and resulted in the "T37" experimental vehicle with a conventional layout and arrangement.

Like the M24 before it, the T37 is designed to be as light as possible for its specific tank classification, reducing critical armor protection for things like crew and systems. Experience with the proven US 76mm gun sees this weapon as the focal point of the T37 prototype. Interestingly, the T37 was equipped with a novel main gun rangefinder, but this proved too complicated for the design and was therefore simplified as a "T41" pilot vehicle.

After completing the necessary evaluations, the T41 officially entered service as the "M41 Bulldog" and production ramped up at the Cadillac Cleveland Tank Plant in 1951. It wasn't until December 23, 1950, that the "Little Bulldog" was renamed the "Walker Bulldog" in honor of General Walton W. By 1953, there were enough M41 Walker Bulldogs to officially replace the obsolete M24 series in US Army inventory.

The M41 had limited service in the Korean War (like the T41).

From the outside, the M41 conformed to the design doctrine of the US Army at the time. The tank has a solid hull mounted on a tracked chassis, with the driver in the front, the turret in the middle, and the engine in the back. There are five twin-tire wheels on the track side, with the drive sprocket at the rear and the idler at the front. Three track wheels support the upper part of the track system. The suspension is a torsion variant that allows plenty of off-road driving.

The driver was seated in the forward left position of the front hull, under an armored hatch with three sights, the cabin was located under a well-sloping glass pane. The inclination of the tower is also good, with the thick sides tapering towards the top of the tower. The M41 consists of a crew of four, including the driver, tank commander, gunner (gunner) and loader. At this point in history, American tanks have eliminated the designated archer/radio operator from their designs.

The crew's armor protection is up to 1.5 inches (38 mm) thick.

Powered by the installation of a Continental AOS 895-3 series 6-cylinder 500hp petrol engine. This gives the tank a top speed of 45 mph on ideal ground and a range of up to 100 miles. The end result produces an agile vehicle with enough firepower to meet the threats of the modern battlefield, although the Continental engine is thirsty, has limited range, and is notorious for its high decibel levels during operation - when the surprise factor comes into play , which is a flaw.

Also, the average American tanker found interior conditions very cramped. Overall, the vehicle weighs just under 24 tons, measures 19 feet long and stands just under 9 feet tall, proving to be reliable, robust and easy to maneuver.

The main armament of the M41 was a 76mm M32 series main gun mounted on an electric (later hydraulically powered) pivot turret. The Browning M1914A4 7.62mm (0.30 caliber) machine gun was mounted on a coaxial bracket next to the main gun and operated by the gunner.

The trainable 12.7 mm (0.50 caliber) Browning M2 heavy machine gun can be mounted on the turret in the commander's hatch to counter air threats or lightly armored enemy vehicles.

Overall, the M41 saw several notable variants, starting with the base M41 production model in 1951. In 1953, the M41A1 was introduced with a hydraulically powered turret instead of the original electric turret.

The new turret power center proved to be more compact and allowed for an increase in the required internal storage capacity for 76mm projectiles - from 57 to 65 rounds. Introduced in 1956, the M41A2 was equipped with a Continental AOS 895-3 fuel-injected 6-cylinder gasoline engine.

Previous M41 forms have also been upgraded to this new engine standard. The M41A3 designation is used simply to denote a production model of the M41A1 that meets the M41A2 engine standard. The M41's chassis was then used to develop the 1942 M41 "Duster" - as well as a mobile anti-aircraft weapon with 2 x 40mm Bofors guns.

Other countries have also upgraded their M41s through various programs, adding additional features such as indigenous main guns, different engines and explosive reactive armor (ERA). Many of these have been retired by their respective owners as defense budgets allow for affordable modern upgrades.

After the Korean War, the M41 later experienced combat action in the Vietnam War - a conflict that was not determined by the arms movement as in previous wars. The South Vietnamese army was equipped with this model after receiving a large number of them from the French.

These M41s performed quite well, a testament to the original American design and the Vietnamese tanker crew in-house. Ultimately, the war was futile for the Americans and the South, causing the former to retreat and the latter to surrender.

In US Army service, the M41 series has been officially replaced by the updated M48 "Patton" medium tank series. However, the M41 continues to be widely used, with more than 1,500 examples delivered for stock use in several countries around the world. Some of the largest foreign operators are Taiwan, Brazil and Thailand.

Even today, some armed forces continue to use the M41 despite its operational costs and technological obsolescence.

Total M41 production reported at 3,728.
