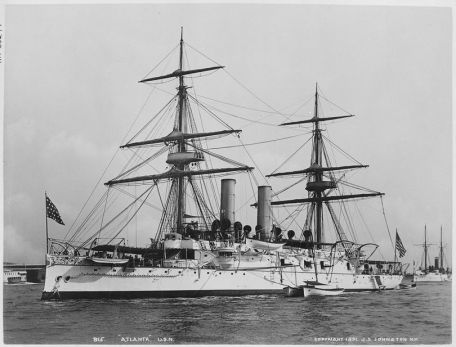

USS Atlanta (1886)

History of USS Atlanta (1886)

A new initiative by the United States Navy (USN) spawned the "ABCD" fleet - USS Atlanta, USS Boston, USS Chicago and USS Dolphin (eventually developed around USS Yorktown and USS Bennington). Top 3 The ships were launched as protected cruisers and were classified as overhead damage due to shell explosions due to their use of armored decks to protect their most important parts - guns and machinery. The U.S.

Navy used steel throughout its construction, as the U.S. Navy followed the path of other naval powers around the worldsteel ships surpassed the once-proud wooden "fleet" fleet. With this action, the USS Atlanta became the first steel warship of the U.S. Navy's "New Navy" campaign.

USS Atlanta was laid on November 8, 1883 and launched on October 9, 1884. She officially entered service on July 19, 1886, and was named after the city of Atlanta, Georgia.

The ship was originally built at the John Roach & Sons Shipyard in Chester, Pennsylvania, but the company's bankruptcy forced USS Atlanta to be completed at the New York Navy Yard. At the time of construction, the USS Atlanta had a displacement of 3,250 tons, a length of 283 feet, a beam of 42 feet, and a draft of 17 feet. Her staff includes 284 employees.

Propulsion comes from 8 coal-fired cylindrical boiler units linked to horizontal compound engines producing 3,500 horsepower on a single shaft. This allowed her to go just over 16 knots.

Like other ships from this transitional period in Navy history, USS Atlanta was fully rigged, with sails serving as auxiliary drives for engine fittings. The range is 3,900 miles under mechanical power and essentially unlimited under sailing power (assuming food and coal supplies are plentiful).

Her profile shows the typical pointed stern. Near the midship there are two smoke funnels predetermined by the sail masts. One main turret remained forward and the other was aimed at the rear. A single shaft turns the multi-blade propeller unit under the stern, the propeller is located in front of the large rudder for steering.

As a protected cruiser, USS Atlanta received armor plates to protect its vital components from enemy fire. This resulted in 2 inches of armor protection on the turret, up to 1.5 inches on the deck, and 2 inches on the conning tower.

Her primary armament consisted of 2 x 8" (203 mm)/30 caliber guns mounted on trainable turrets - one forward and one rear. This was covered by a 6 x 6" (152 mm) /30- Caliber main gun and 2 x 6 lb (57 mm) guns. Close range work is handled by a 2 x 3 lb (47 mm) Hotchkiss revolving gun, 2 x 1 lb (37 mm) gun and 2 x .45 caliber Gatling gun system.

The well-armed and well-armored USS Atlanta presents itself as a formidable adversary on the high seas.

USS Atlanta's career began in 1887 when she set sail for Atlantic waters as part of the North Atlantic Squadron. She lived on the east coast of the United States for a while before being sent to Europe in 1889.

After a stop in Brazil on the return voyage, she completed her voyage in New York waters before continuing her coastal service. Before her first retirement on July 18, 1893, she participated in a number of drills, training, and reviews.

She was back in service as early as April 2, 1894, and was operating on American shores again. She was retired again in September 1895 and spent the next five years in New York waters.

The USS Atlanta underwent a period of modification from 1897 to 1899, providing her rapid-fire 6-inch gun (the powder bag method was phased out in favor of brass-cased ammunition) and a 4,030-horsepower three Double expansion engine. Helping to modernize and improve her performance allowed her to return to service on September 15, 1900, and to join the South Atlantic Squadron near Brazil in October. By the end of 1902, she had participated in pro-American operations in the Dominican Republic and Panama in the Caribbean. After another trip to Europe, she returned to her home waters in October 1904.

In January 1905, she ended her stay in Annapolis, Maryland.

A few months later, she returned to service as part of the Coastal Squadron and served as an instructor. From 1905 to 1912, she accepted a barracks ship position, first in Norfolk and then in Charleston, ending her days in the U.S. Navy. She was decommissioned on March 23, 1912, and on April 24 of the same year, her name was removed from the Naval Register.

She was stripped of useful parts and her hull was sold in June.
