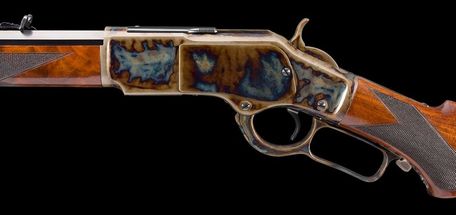

Winchester Model 1873

History of the 1873 Winchester Model

The

Model 1873 was one of the early legends of the booming American gun industry and a model product from the Winchester Repeating Arms Company. The term "gun that won the west" is most associated with the Model 1873, but that's more because the weapon system is readily available to the average person, thanks to its total production of over 720,000 in circulation.

In fact, the Sharps Model 1874 is often cited as a better candidate for taming Wild West guns. Hollywood's use of the Model 1873 rifle and its interpretation of events related to the Old West and the Indian War further strengthens the legacy of the Winchester rifle.

Background and Development

History does place the Winchester roots as the descendants of Smith and Wesson. Horace Smith, Daniel B. Wesson, and C.C. Palmer founded the Volcanic Repeating Arms Company in 1855, with New England garment manufacturer Oliver F. Winchester as a shareholder. Volcanic produced the "Volcano Rifle" with some commercial success, but was plagued by the poor performance of its cartridges. Wesson set out to create a new .44 cartridge, dubbed the "rimfire".

Two years later, Winchester became the majority shareholder in the company and changed its name to the New Haven Arms Company. On October 16, 1860, a talented company engineer, Benjamin Tyler Henry, patented a lever-action bolt-action rifle, aptly named the Henry Rifle. The weapon will be a new and improved form. 44 caliber rimfire ammo, only slightly based on the previous Volcanic design. Manufactured under the New Haven Arms Company brand, Henry rifles received only limited service by Union Army soldiers during the American Civil War, eventually peaking in a six-year production run and 12,000 rifles.

However, it is new. The 44 caliber rimfire cartridge will propel Winchester into the well-known field of American gun suppliers. After the war in 1866, Oliver Winchester changed the company's name again, this time to the "Winchester Repeating Arms Company", for which the bureau introduced its first product - a type known as the Winchester Model 1866 lever action bolt action rifle "yellow boy" - essentially a redesigned and improved Henry rifle. In 1873, the company introduced a new and improved version, the Winchester Model 1973.

While the Henry Rifle and similar Model 1866s used dual firing pins as their rimfire cartridges, the Model 1873 introduced the .44-40 WCF ("Winchester Heartfire") cartridge.

Winchester Model 1873

The Winchester Model 1873 was produced in three different shapes - rifle, carbine and musket (musket shapes make up a small portion of the overall Model 1873, about 5% depending on the source). Rifle groups vary between their own sub-variants, while the carbine and musket forms maintain their basic form. That said, 1873 rifles can have different wooden furniture, special carvings, octagonal or round barrels, different barrel lengths, and more.

A typical 1873 rifle had a barrel length of 24 inches, while a carbine was usually 20 inches and a musket was 30 inches. Other shorter barrel lengths eventually appeared in both the rifle and carbine types. Rifles are known for their crescent-shaped stocks, while carbines and muskets have their own identical stocks with only a slight curve to adjust the trigger options. The Model 1973 was the first gun to use a center-fired cartridge, and the first to use "iron" iron on the gun body.

The first receivers of the Model 1973 were made of iron, but were later phased out sometime in the 1880s. The Model 1873 was introduced in late 1873 with only 18 units in circulation.

Early production forms of the first 1873 and the second 1873 both had screw caps for their magazines. It was only later that a new plug and screw connection was introduced into production. All the first Model 1873 guns were in the .44-40 Winchester caliber specification.

That . The 38-40 Winchester compatible model came online in 1879, followed by the Winchester 32-20 in 1882. 22-round and long-bore rimfire versions were introduced between 1883 and 1888 (sources vary), but there were fewer than 20,000 of them. These rifle calibers were significant for many of the pistols that used them at the time. This means that a person only needs to stockpile one type of ammo to power their many different weapons - whether it's a pistol or a rifle, or both.

This is certainly an advantage for every cross-border commuter who travels.

. 32-20 1873 models use a solid butt plate, although these models do not have a cleaning rod trap door. Some rifles with full-length magazines include a pair of magazine hangers. Early Model 1870 carbines were equipped with sights, although this gave way to blade array sights.

That . The 32-20 carbine uses a rifle-style magazine catch instead of the front barrel.

The receiver or frame houses all the major internal components of the rifle. Chief among these is the finger lever, which enables the Model 1873 to "repeated" movements. The lever, which operates as one large unit, also forms the trigger guard. The hammer is visible on the top rear of the receiver. The barrel is mounted on the upper front end of the receiver, and the barrel is mounted directly below the barrel.

Depending on the shape of the Model 1873, the barrel can be round or octagonal. The oval charge port is located on the lower right side of the receiver, while the ejection port is located on the top of the receiver. The firing pin and breech block were placed in the upper part of the receiver. The forehand area and stock are made of wood, the stock also serves as the rear handle.

The spring-loaded tubular magazine holds up to 15 ready rounds. Overall, the Type 1873 was fundamentally utilitarian in design, resembling the common man who would be its number one customer.

Of course, the heart and soul of the Type 1873 is its lever-bolt movement. While it's not a perfect design (many consider it inherently weak but effective), it's adequate for the task at hand. The operator pulls the lever to push a new round out of the spring-loaded tubular magazine and raise it into the firing chamber via a brass lifter.

Once in place, the bolt closes and locks, leaving the gun ready to fire. The trigger operates the hammer, causing the firing pin to hit the bottom of the cartridge, igniting the powder and eventually ejecting the bullet out of the barrel (muzzle velocity always varies with ammo and barrel length). Rimfire cartridges are hit at the bottom of its rim, while centerfire cartridges are hit at the center of its bottom.

It is worth noting that most of the Model 1973 variants are of the medium fire cartridge type.

Nothing beats the Model 1873

Although the newer and lighter Type 1892 was offered by Winchester in the 1890s, the commercial market for the legendary Type 1873 remained strong. For less than $20, any American could own this rifle, and many pioneers eventually did, cementing the Winchester name and the tradition of the Model 1873 family.

The inevitable end of the road - in about 50 years

Surprisingly, Winchester didn't stop producing the Model 1873 until 1923 - some 50 years after it was introduced - such was the success of the rifle line in all its forms. The Model 1873 has been resurfaced with authentic replicas, the most famous of which are made in Italy. Regardless, the Type 1873 is a versatile and effective weapon ready for any future operation.

For many Americans, it has become the quintessential Wild West lever-action long gun.

Small Big Speaker

Battlefield evidence from the Battle of Little Bighorn indicates that some Cheyenne, Lakota or Arapahoe Indians used Winchester Model 1873 bolt action rifles (and other bolt action types) under Custer The single-shot Springfield Model 1873 was still used against General George Custer and his 7th Cavalry. 45.

70 Caliber Carbine. While the Springfield has a longer range, nothing beats the rapid fire of a bolt-action rifle.

Pop Culture

The Winchester Model 1873 bears the main title of the Jimmy Stewart West film "Winchester '73" in addition to many film and print productions. The Winchester rifle was also part of the gimmick (and ultimate ally) in the horror comedy Shawn of the Dead.
