Ryan FR Fireball

History

The

Ryan FR Fireball is a unique creation in the history of US naval aviation. The fighter used two separate enginesa radial piston and a turbojetin a single airframeproviding impressive performance statistics for its time. Unfortunately for Ryan, the Fireball Fireball came too late to see combat action in WWII, and subsequently fell out of favor with the U.S. military seeking an "all-jet" system after the war. Production of the Fireball only lasted a year, after which it spanned a short two-year lifespan before being retired in favor of a more powerful and modern system. The Fireball was the first turbojet deployed by the U.S.

Navy and the first jet to land on a Navy ship. She also set a world altitude record for a turboprop.

The origin of the fireball

The Ryan FR Fireball series was conceived in 1943 under the direction of U.S. Navy Admiral John S. McCain Advanced Turbojets. With war in full swing in Europe and the Pacific, turbojets are a thriving propulsion project in several countries. The idea behind the compound concept preserves the proven radial piston engine system while combining the untapped power and inherent advantages of turbojets.

Early forms of turbojetsas envisioned in the United States, Britain, and Nazi Germanyhad problems with reliability, durability, and performance. As such, they have proven generally unsafe as the primary method of propulsion for any perceptible airframe, especially during critical take-off and landing operations - although testing and development continue.

It was thought that a compound fighter would alleviate the plight of an all-jet, keeping turbojet propulsion only as a backup to the main piston-driven radial engine. The result would also yield a fighter design that could outperform any other piston-powered fighter at the time.

Type Ryan Aeronautical

Ryan Aeronautical was tasked with developing new fighter jets to meet the unique requirements of the US Navy. It's worth noting that Ryanair experimented with several design configurations with this twin-engine arrangement, although as the war quickly drew to a close, many of these developments were abandoned by the U.S. military - which instead waited to see how they would become what is it like. - The jet fighter was under development at the time.

Ryan Aeronautical was founded in San Diego, California in 1934 by T. Claude Ryan, the creator of Charles Lindbergh's mythical "Spirit of St. Louis." In 1969, the company became part of Teledyne until it was acquired by Northrop Grumman in 1999.

Ryan will be remembered for his many different aircraft designs, including a pair of V/STOL aircraft, and Ryan's most famous product eventually became the Firebee. Unmanned drones in the early 1950s.

Prototype

Ryan's first composite fighter prototype was unveiled in 1944 and made its maiden flight on June 25. Testing continued, although the prototype was eventually lost in an accident at Naval Air Station China Lake in October. Two other prototypes were also lost, and the investigation focused on the rivets on each wing.

These proved too weak to maintain the strength needed for the new aircraft, so the number was doubled. Tested on the deck of the USS Ranger in 1945. Development progressed well, and the Ryan product was officially commissioned by the U.S.

Navy as the Ryan FR-1 Fireball, which began rolling out in March 1945. With 700 Fireballs ordered, at least 66 of these novel systems were delivered before the end of World War II.

Just in time for the end of the show

U.S. Navy and Marine Corps operations are concentrated in and around the Pacific Theater. These combined forces also included the participation of the British Royal Navy as well as the Commonwealth Army, which eventually drove the Japanese Empire back from as far as Okinawa. World War II also ushered in the age of aircraft carriers, proving that they are an integral part of the modern militarywith the U.S.

Navy becoming a global power in the field. The shackles on the empire eventually narrowed down to the Japanese mainland. In August 1945, Japan finally surrendered under the lethal force of American bombing and atomic bombs. The official surrender in September and the official end of World War II (the war in Europe ended in June 1945). Of course, this left the Ryan Fireball system temporarily in limbo, and military purchase orders were quickly cut or canceled altogether.

So the Ryan FR fireball was not seen in the main stage fight.

The fireball walks around

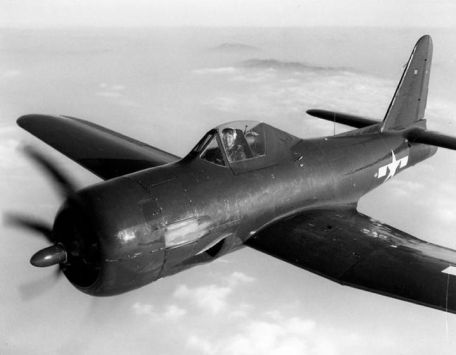

Fireball can be considered the most traditional in terms of exterior design. The front of the fuselage is rounded and the sides are rounded, essentially mimicking a tube that tapers off at the rear. The radial engine is mounted in the forward compartment forward of the single-seat cockpit. The cockpit position is pronounced, with a good forward lean in the design. The Pilot sits behind a thin-framed windshield and under a one-piece bubble-like canopy with a small frame.

The canopy can be slid back for easy access to the cockpit. With the exception of turbojet systems, these controls are also mostly conventional. The wings are set low along the sides of the fuselage, and the dihedron (inclined up) of the assembly is just outside the main landing gear legs.

The fuselage tapers to the tail, which incorporates a conventional vertical tail and applicable horizontal stabilizers. The jet engines were buried in the rear of the fuselage and expelled through a ring under the empennage.

Unlike other propeller-driven fighter jets, the landing gear is three-wheeled, consisting of two single-wheeled main legs and a single-wheeled front leg. This gives the fireball a distinct "nose-up" appearance when stationary. In all respects, the Fireball certainly retains all the physical characteristics of a good fighter jet design.

As a US Navy aircraft, the Fireball is equipped with a carrier landing hook.

Fireball Show

As a compound fighter, the Ryan Fireball retains some of the unique performance characteristics of its radial and turbojet engines. The production FR-1 model was equipped with a Wright R-1820-72W Cyclone radial piston engine, delivering 1,350 hp to a three-bladed propeller coupled to a 1,600 lbf thrust General Electric J31-GE-3 turbojet. This combined power allows for a top speed of 426 mph (limited to 275 mph only when driven with the radial engine).

Cruise speeds are typically around 150 mph, and range is an impressive 1,300 miles. Fireball's listed service ceiling is equally impressive at 43,100 feet, where the plane can climb at 80 feet per second.

Fireball Weapon

Considering the lessons learned from air-to-air combat in WWII, the Fireball was fairly modestly armament. While the U.S. Navy's successful fighter jets have installed no less than 6 x .50 caliber heavy machine guns, and other nations have used cannons of various calibers, the fireball is limited to 4 x .50 caliber M2 Browning air-cooled heavy machine guns, each The rifle carries 300 rounds of ammunition. However, her offensive strike was aided by 2 x 1,000 lb bombs under the wings. This allows the fireball to attack ground targets with some authority.

Additionally, the bombs could be replaced by 8 x 5 in (127 mm) unguided air-to-surface high-explosive rockets on a single launcher under each wing (four rockets under the wing).

Limited range

The Fireball was assigned to only one US Naval Air Wing during its service. This became VF-66 Firebird Squadron. The VF-66 existed from May 1945 to October 1945 before becoming the VF-41.

The VF-41 served in the fleet from October 1945 to mid-1947, when it was redesignated VF-1E in November of that year. Eventually, the Firebird became the VRF-32.

Text on the wall

The end of World War II essentially meant the end of the "unimaginative" consumption habits of the American war machine. Billions of dollars in annual defense spending have now been reduced to maintain a barely active military, while the focus has turned to peace and rebuilding lives and countries. Many military items are short-lived because of this, and the unique fireball is no exception.

Coupled with the growing popularity of turbojet technology, and pure jet fighter jets quickly becoming a hit with the U.S. military, people began to understand such a decision. It was this cut in military finances that would destroy the free world in the early days of the impending Korean War.

The first aircraft carrier to land anywhere. . is unintentional

On November 6, 1945, a fireball was forced to land on the deck of the escort carrier USS Wake Island. Apparently, the pilot's radial piston engine failed, forcing him to start the jet engine.

This allowed pilots to safely land the aircraft on the USS Wake Island - which was actually the first jet to land on a Navy ship. However, the fireball barely hit its target, just grabbed the last safety rope and was blocked by the guardrail.

High point after just two years

At this point, the fireball has more or less reached its peak. With no more wars to fight, the concept proved to be more work than reward. The U.S. Navy was more interested in all-jet products, and the Fireball quickly took a back seat. In 1947, the Ryan Fireball was officially decommissionedand that was quickly over, to be sure, as she only served two years in the U.S.

Navy.

Promoting Fireball

During their entire production run from 1944 to 1945, only 66 examples were eventually delivered. There were other attempts to develop more promising systems, including the XFR-2 prototype, which installed a Wright R-1820-74W series piston engine. The FR-3 will be the production form to match GE's I-20 family of turbojets. The XFR-4 was another prototype proposal, although it featured a Westinghouse J34-series turbojet that ultimately proved to be the fastest of all fireball designs, at around 100 mph.

The XF2R-1 "Black Shark" prototype strayed somewhat from the Fireball's baseline, attempting to combine a General Electric XT31-GE-2 turboprop with a turbojet to improve performance specifications. However, only one prototype was eventually produced, but it set a new world altitude record for a turboprop, the magic number on May 2, 1947, of 39,160 feet.

The Black Shark is easily identifiable from the base fireball by its tip spinner and large, four-blade propeller system.

Today's fireball

It is believed that there is only one Ryan Fireball airframe in the world. This single example was obtained from the Fire Air Museum in Chino, California.
