SteelRock Velvet Wasp

History of SteelRock Velvet Wasp

UK-based SteelRock is developing its Velvet Wasp octarotor drone as a dedicated combat drone for close air support (CAS) roles. Looking like something out of science fiction, the quadrupedal creation relies on eight rotors for flight and hover, and can carry a single precision-guided weapon under its center of gravity.

This type of drone has been used in ongoing campaigns in Syria and Iraq, and even ISIS forces are beginning to equip off-the-shelf helicopter-like UAS with basic attack capabilities.

Velvet Wasp is able to provide warfighters with a bird's eye view of the action and, if necessary, engage digging enemy forces from the air. It comes with electro-optical (EO) and infrared (IR) sensors for operation. Range is up to 62 miles, and the plane can reach speeds of 60 mphthough all depends on the operating terrain (mountains and higher altitudes may reduce efficiency somewhat). The structure is based on carbon fiber, and the weight ranges from 35 to 40 pounds (without payload).

The actual control of the system uses two operators, one as a full-time pilot and the other handles the navigation needs.

One potential downside of the system is its size - which would require a vehicle or helicopter - but the potential benefits of helicopter drones may outweigh any downsides; Velvet Hornet could allow ground troops (closer to the elements) to see walls Or buildings, or - from a distance - engage existing known threats such as snipers. Conventional onboard systems assist the operator in keeping the plane upright, but search, pursuit and attack functions are handled manually.

The aircraft also has improvised explosive device (IED) neutralization capabilities, enabling it to help ground operators detonate identified airborne threats with little risk to personnel.

In addition to its obvious military offensive value, the Velvet Hornet is also capable of delivering supplies to active duty units located behind enemy lines. A new batch of ammunition, food, or medicine can largely sustain a platoon that cannot be retreated or relocated.

Velvet wasps are also envisioned for non-combat missions, such as: B. Assisting civilians after natural disasters, reaching areas cut off from land and inaccessible to rescuers.

The

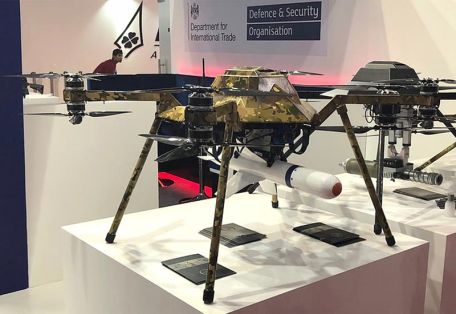

Velvet Wasp, on public display during the 2017 Dubai Airshow, has a precision-guided Textron Fury missile beneath its body.
