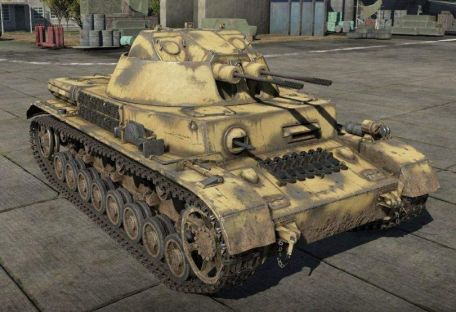

Flakpanzer IV Kugelblitz (Ball Lightning)

History of Flakpanzer IV Kugelblitz

With resources increasingly scarce, the Germans became masters at adapting existing armored vehicles and adapting them to new battlefield demands. This was the case with the post-war Flakpanzerkampfwagen IV "Kugelblitz" - a self-propelled anti-aircraft vehicle based on the famous chassis of the PzKpfW IV (Panzer 4), the most numerous German tank arsenal in the army.

The Panzer IV's value declined during the war due to the arrival of more powerful vehicles, and its off-the-shelf chassis became the basis for many later wartime projects - some used as anti-aircraft vehicles, others as self-propelled "cannon" aircraft carriers.

Compared to earlier German attempts at self-propelled anti-aircraft vehicles, the Kugelblitz was unique in design in that it housed the gunner in a fully enclosed, fully traversable armored turret - both to protect against the dangers of the battlefield, Also resistant to elements. The five crew consisted of the in-fuselage driver in the forward left and the gunner/radio operator in the forward right. The rest of the crew consists of the vehicle commander and two full-time gunners in the turret. Primary armament consists of 2 x 30mm MK 103/38 series guns, based on the classic MK 103 series aircraft guns used in many Luftwaffe designs - this weapon is already in circulation in Germany.

The Bow Gun is a 7.92mm MG 34 General Purpose Machine Gun (GPMG), which offers some protection from infantry attack - although its position as a bow mounted gun limits its firing angle. Overall, the vehicle retains the same general form and function as the Panzer IV medium tank family, with a rear-mounted engine and vertical wall hull layout. The main difference is its new turret structure, which features a low profile design with rounded walls for basic ballistic protection.

The overall armor protection thickness of the vehicle reaches 80 mm (3.1 inches), and the vehicle weight is approximately 25 tons (short).

The chassis is the same as the Panzer IV, but with many pairs of wheels. The drive sprocket is at the front, the chain idler is at the rear, and five chain idlers manage the links at the top of the barrel.

Power is provided by a 12-cylinder Maybach HL 120 TRM series petrol engine with an output of 296 hp. Road speeds reach 24 mph and range is up to 120 miles.

The value of anti-aircraft tanks in German service was invaluable, as the country fought a purely defensive war in 1945. The Soviets advanced from the east, while the Western Allies broke through from the west, and the Italian buffer zone to the south was long gone.

With Luftwaffe assets constantly being deployed elsewhere, the Army had to find its own local fortifications for its advancing convoys. Allied fighter-bombers have become a major threat to any German Army trying to move around in broad daylight under clear skies.

[Page. As a result, the vehicle was realized in only five complete pilot forms (prototypes) before the end of the war in Europe in May 1945.

Specification

Basic

Roles

Dimensions

Performance

Performance

for everyone else in our database)

Armor

Not available.
