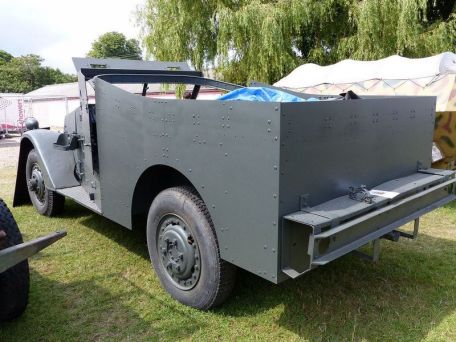

M3 Scout Car (White Scout Car)

History of the M3 Scout Vehicle (White Scout Vehicle)

Numerically, the white reconnaissance vehicle (known as "G-067" and "M3A1" in US Army nomenclature) was a great wartime success, produced during WWII (1939-1945) nearly 21,000 such models. became. About half of that was in foreign service, where it filled desperate stocks as a fast, road-friendly reconnaissance tank. The vehicle is very traditional in design but very useful in the context of a major war with many fluid fronts.

This type enjoyed a longer lifespan abroad, as U.S. Army stocks were sold as surplus as early as 1944, and active forms of service in foreign militaries existed into the 1990s.

The design phase of the white reconnaissance vehicle began in 1937 and featured a simple wheeled 4x4 chassis built by the White Motor Company of Cleveland, Ohio, with an armored upper layer built by the Diebold Safe and Lock Company (Ohio) Construction. The completed chassis was shipped to the Diebold factory and armored, then shipped back to White Motors for completion. Compared to other wartime cars, these cars were easy to mass-produce and efficient, resulting in a large total manufacturing volume on the line. Armour protection for the crew - usually three people, including a driver, commander and gunner - each panel is 6mm to 13mm thick.

A "takeoff" pulley is mounted to the front of the vehicle, although no powered winch is standard. However, the radio kit is part of the standard equipment, as is the tarpaulin used as the roof.

The car is powered by a 110 hp Hercules JDX 6-cylinder in-line petrol engine. The chassis is mounted on a leaf spring suspension system and can travel up to 50-55 mph with a range of up to 250 miles.

The powertrain features all-wheel drive (AWD) capability and a four-speed manual transmission system. The driver drives the car from the traditional left front position.

The general layout of the car is very traditional, with the engine at the front, the driver centered on the left, and the cabin at the rear. The tarpaulin covering is to protect the occupants from the dangers of the battlefield and the environment.

In addition to the standard crew of three, the vehicle can accommodate up to four people in the passenger compartment. Weapons are variable, but typically consist of an air-cooled .50 caliber Browning M2 heavy machine gun mounted in the center of the vehicle. If necessary, "slide rails" allow the gun to slide around the entire crew compartment to protect all sides of the vehicle. The .30 Browning M1919A4 medium machine gun is also common, usually mounted to the rear of the vehicle.

The crew's personal weapons were also involved.

Like other wartime aids, as the war dragged on, the white reconnaissance vehicle was slightly modified during its manufacture. A spare fuel tank was added in place of the right-hand headlight, and on later models, the crossed sword decal was removed from the side door.

The drop-down armored visor for the front windshield has also undergone some changes, while the windshield itself has been revised from the original pilot vehicle version.

In practice, the M3 reconnaissance vehicle proved to be a viable military reconnaissance vehicle. However, limitations are also apparent due to the vehicle's lack of protection for its occupants. The M3 is not in direct contact with the vehicle, and avoiding combat with enemy infantry increases the survivability of the crew.

With only canvas protecting overhead passengers, the crew was at the mercy of indirect fire such as mortars and artillery, and a grenade attack could kill everyone inside quickly. Basic armor protection only protects against small arms fire and provides basic security in an ambush.

The vehicle's off-road performance also proved to be lacking compared to competing 6x6 wheel shapes with good performance and traction, and was further surpassed by a tracked vehicle navigating the rough terrain of the European battlefield.

In any case, Lend-Lease is 10 times more available in quantity and scope than the M3 series. More than 20,000 vehicles were produced which were also adopted by armed forces outside the US in the postwar years: Australia, Belgium, Canada, China, Czechoslovakia, France, Greece, Norway, Philippines, Poland, USSR, UK and others (See full user list below) Just a small sampling of the notable operators in the series.

The Soviet Union acquired the model through Lend-Lease, and the new Israeli army took over its stockpile after the warand used them in the 1948 Arab-Israeli War. The German army was very happy to be able to recover captured weapons/vehicles and took an unknown number of captured M3 reconnaissance vehicles as their own.

French cars served during the First Indochina War (1946-1954), after which the South Vietnamese Army continued to fight in the theater.
