History of White Armored Vehicles (Armored Vehicle #2)
The White Motor Company's contribution to the American War in WWII (1939-1945) is well documented, but their support goes back much further - developed and produced for the Army and Marine Corps during WWII A series of armored vehicles World War I and 1945 World War I (1914-1918). Referred to simply as "white armored vehicles", the first vehicles were introduced in 1915 and issued to French troops in desperate need of mechanized systems to defend Western Europe.
Production of White Motor Company cars continued until the end of the war in November 1918, and some forms created a life cycle for colonial security efforts in the postwar years - not actively used until around 1941.
The armored vehicles of World War I were a far cry from the specialized vehicles encountered in subsequent world wars. These systems are usually created by rebuilding an existing civilian car or truck and installing an armored superstructure on the chassis. Due to the extra weight, the rear axle usually has twin tires. The interior with the driver's seat and steering wheel, as well as the original front engine bay, has been fully preserved.
Most of the weight of the superstructure is at the rear of the vehicle, the topmost usually being a movable turret with a machine gun. While the concept is sound on paper, field practice often suggests a vehicle that is too bulky and unwieldy for front-line tactical service, as civilian chassis are not built for the rigors of warfare.
However, with few options available, most armed forces still have these vehicles in service.

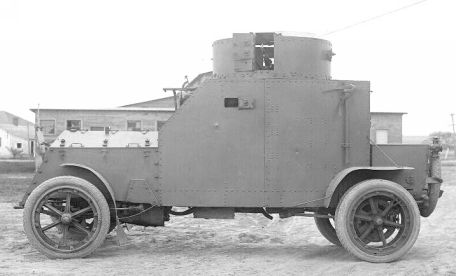

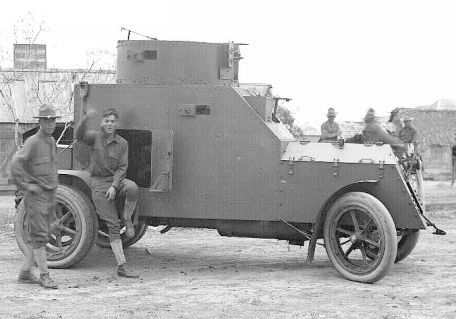

The original 1915 "White No. 1" was a four-wheel drive product that served for some time in the French Armed Forces. In 1916, the "White 2" appeared, issued to the United States Army and United States Marine Corps (USMC) units. Some were transported to the El Paso area to support Pancho Villa's "punitive expedition" led by General John Pershing - although the terrain made the operation revolve primarily around cavalry. During this time, future U.S.
Army General George S. Patton used a mechanized attack to take out Villa's bodyguard, Julio Cardenas, in a raid.
The Model 1917 - which emerged during the United States' entry into the war the following year - was developed to specific requirements of the American Expeditionary Force (AEF), which eventually became the Model 1918. The Model 1918 (aka "White AEF") retained the same 4x2 wheeled capability and was also supplied to AEF units as well as the French Army.
Although the Model 1918 was quickly abandoned by the Americans, it remained in French rebuilt stockpiles until the early 1930s, providing needed security services in French-administered overseas colonies.
The 1918 model became a 3.4 ton vehicle with a crew of three. Its armor provides 3.8mm to 6.35mm of protection for the occupants and the vehicle's vital interior components. This is effective against small arms firepower, but cannot be satisfied with armor-piercing ammunition, artillery and mines. Power is provided by a 4-cylinder petrol engine with 45 hp.
The chassis uses a leaf spring suspension system to provide some off-road support. On ideal surfaces, road speeds can reach 65 mph. The main weapon of these American cars was the Colt-Browning M1895 machine gun. All versions use a white 4x2 wheel arrangement.
Specification
Basic
Roles
- Reconnaissance (RECCE)
- Security / Defense / Law Enforcement / Escort
Dimensions
3.8m
1.85m
7.71 ft (2.35 m)
3 tons (3,060 kg; 6,746 lb)
Performance
Performance
104 km/h
186 miles (300 km)
Armor
Variant: 1 x M1895 Colt Browning Machine Gun (US Model).
Depends on weapon.
Changes
White armored vehicle - basic series name
White #1 - Model 1915; used by the French Army
White #2 - Model 1916; US Army and USMC usage
Model 1917 - Model 1917; built to the requirements of the American Expeditionary Force; becomes the "White AEF" model.
Type 1918 ("White AEF") - Type 1918 for AEF use in Europe.
