Type 6614

1992 ARMORED PERSONNEL CARRIER MODERN

History

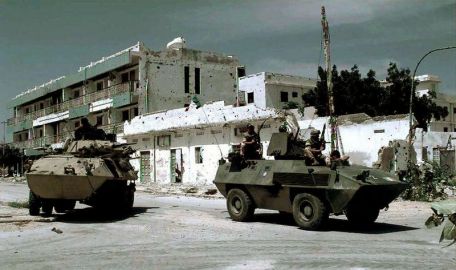

The Italian-made Type 6614 is a 4x4 armoured personnel carrier jointly built by defence contractors FIAT and Oto Melara. The Type 6614 is commanded by one person (the driver) and can carry up to 10 combat-ready passengers, equipment or medical waste.

Mission-specific weapons (including dual .30 caliber machine guns) can be mounted on powered cupolas and provide firing ports for interior passengers (9 total - 4 left, 3 right, and 2 aft).

The Type 6614 is very similar to the Type 6616 armored car and is fully amphibious (powered by its own wheels and an integrated bilge pump system). Passive armor is provided, as well as smoke grenade launchers for increased crew and cargo area protection.

Overall, the FIAT/Oto Melara Type 6614 is an adaptable frame vehicle suitable for a number of mission roles that are currently involved in urban warfare and defense in Iraq with the Italian security services. The Type 6614 is also produced locally under license in Korea.

Specification

Basic

Year:

1992

Staff:

Manufacturing:

Fiat / OTO Melara - Italy / Asian Motors - Korea

Production:

1,443 units

Roles

- Troop Transport

Dimensions

Length:

19.23 ft (5.86 m)

Width:

8.20 ft (2.5 m)

Height:

5.84 feet (1.78 m)

Weight:

9 tons (8,500 kg; 18,739 lb)

Performance

1 x Iveco Model 8062. 24 supercharged liquid-cooled inline diesel engines producing 160 hp at 3,200 rpm.

Performance

Maximum Speed:

100 km/h

Maximum range:

435 miles (700 km)

Armor

1 x 12.7mm heavy machine gun or 1 x 7.62mm light machine gun (single or dual seat).

Ammo:

1,000 x 12.7mm ammo

2,000 x 7.62mm ammo

Changes

Type 6614 - Base production; variants include battlefield ambulance, armoured personnel carrier, command post, mortar vehicle, and reconnaissance vehicle.

KM-900 - Model made in Korea

Type 6616 - Variant with 20mm armed turret; production of OTO Melara.
