Ceska Zbrojovka vz. 61 (Skorpion)

Ceska Zbrojovka vz. 61 (Scorpio) Stories

The Scorpion submachine gun originally originated in Czechoslovakia, designed in the late 1950s and officially launched in 1961. Design was by Miroslav Rybar and production was directed by Ceska Zbrojovka Uhersky Brod Zastava Arms.

Despite its Cold War origins, the scorpion still enjoys a relatively wide range of uses, with around 210,000 produced.

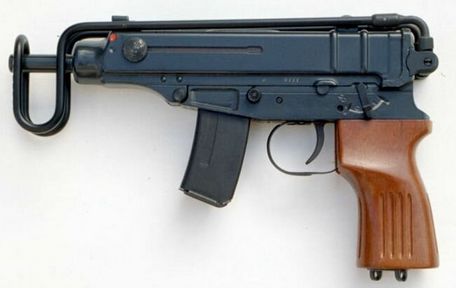

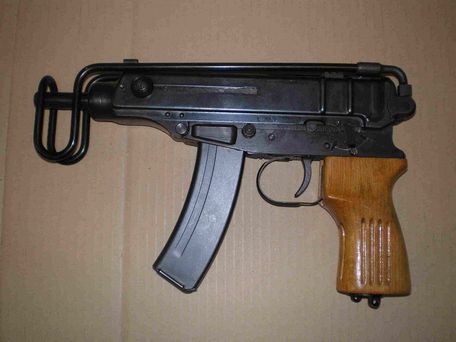

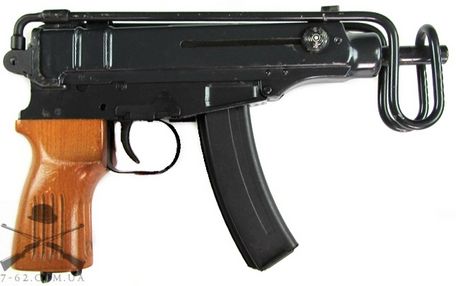

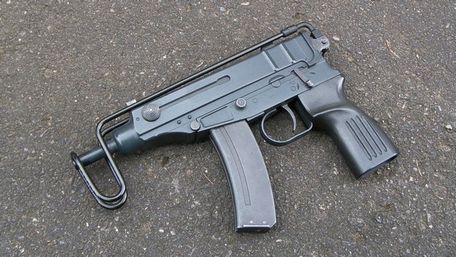

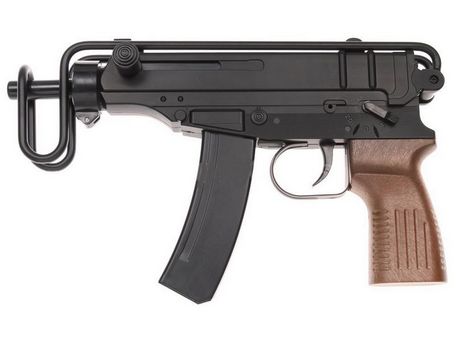

Externally, Skopion enjoys a unique look due to its design. The pistol grip is relatively straight, but ergonomically suitable for leading shooters. The trigger is held in a metal ring, and the magazine feed is just in front of it. The receiver contains all working components and has a pull handle on both fronts. Iron sights are mounted on top of the receivers front and rear of the design.

The barrel protrudes a short distance in front of the forearm. The weapon can be attached to the shoulder with a collapsible wire rest assembly. When not in use, it just folds over the top of the receiver.

In addition to being classified as a submachine gun, the Skopion is sometimes considered a "submachine gun" due to its compact size. This dimension is achieved by an internal telescoping bolt assembly surrounding the barrel assembly.

The Scorpio-specific cartridge also provides less recoil than contemporaries and allows it to operate a "submachine gun". Therefore, it is often considered a pistol and can be carried in a holster.

Depending on the specific variant of the Scorpio, the weapon can be chambered to capture .32 ACP (Czech Standard Cartridge), 9x19mm Parabellum, 9x18mm Makarov or .380 ACP cartridges with 10 or 20 round detachable arc magazines. The 9mm form has a straight box magazine. The shooting action uses the recoil principle of a closed bolt.

Aiming is performed via the front post and flip-up rear sight. The effective range is up to 25 meters, but this depends on the cartridge type. Muzzle velocity is rated at 1,050 feet per second. Depending on the cartridge type, the rate of fire is between 850 and 900 rounds per minute.

Skorpion is a selective fire system that uses three modes of operation - safe, semi-automatic and fully automatic. For special operations, the Scorpion can be equipped with a silencer. Other optional accessories include front vertical handle, solid stock and flashlight. In fact, using the full range of available accessories makes the Scorpion more of an assault rifle than a submachine gun.

During the 1960s, Skorpions offered three different movements, but they never went into production. However, the 1990s brought vz. 61E, vz. 82 and vz. 83, those with .32 ACP, 9x18mm Makarov and .380 ACP calibers or

Specification

Roles

Dimensions

Performance

Changes
