Sukhoi Checkmate (Su-75)

Sukhoi Checkmate (Su-75) History

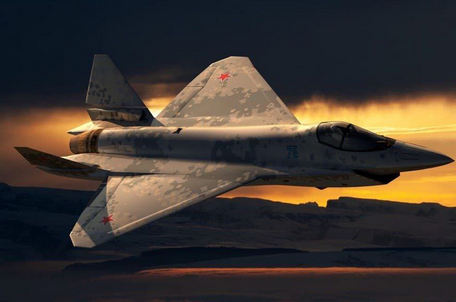

The 5th generation Sukhoi "Chekcmate" light stealth fighter is Russia's latest fighter product and is seen as a low cost Russian offer for those interested Invisible spiritual product exporter. The design was sponsored by Rostek National Corporation (UAC) and was teased outside Moscow just days before the MAKS 2021 airshow.

The aircraft appears to be borrowing design lines from the American Lockheed Martin F-35 Lightning II fighter jet and the Russian multirole Sukhoi Su-57 Felon, both of which have inherent stealth characteristics as well as the fifth Generation classification.

At the heart of the fighter is a single-seat, single-engine configuration with proven external stealth characteristics, including nose-to-tail hull ridges. The cockpit is located behind a short nose cone, presumably a state-of-the-art radar unit. The fuselage is deep, tapering at the nose and tail ends, and is designed to accommodate one or more internal machine gun bays.

Interestingly, the air intakes are ventral to allow a clean intake into the turbofan in the center of the fuselage (both the Lockheed F-16 Fighting Falcon and Eurofighter Typhoon have this design quality) . The new fighter also shares some similarities with the Boeing X-32, a prototype fighter that failed to successfully compete with the X-35 for a role eventually filled by the F-35 Lighting II design. The exhaust ports of the engines are connected to the rear of the fuselage by the empennage and are circular.

The main aircraft has a relatively small area delta shape, eliminating the need for a traditional horizontal stabilizer. The fins are flared out and are believed to be fully movable, covering the roles of vertical and horizontal aircraft in more traditional fighter jet designs.

Estimated performance data indicates top speed in excess of Mach 2. 0. Gross Takeoff Weight (GTOW) assumed to be in the 20 ton (short) range. By comparison, the F-35 reaches speeds of Mach 1.6 at high altitude and has a total weight of 25 tons.

The F-16 Block 50/52 aircraft has a top speed of Mach 2.05 and a GTOW of 13.25 tons. Thus, the checkmate can have performance and battlefield capabilities anywhere between the 5th and 4th (respectively) fighter designs.

It is accepted that the Checkmate aircraft on display at MAKS is a full-scale model and not a full-fledged flyable prototype. In addition, the fighter may carry the official designation "Su-75" while in service, depending on the tail number shown.

The main contenders for checkmate appear to include Argentina and Vietnam, both of which are fielding the aging footsteps of fourth-generation (or older) junior fighters. India has also been vying for new Russian fighter types, and the Checkmate could serve well as a light counterpart to the Russian Air Force's heavier Su-57, as the Mikoyan MiG-29 "Fulcrum" and Sukhoi did with the Su-27 "Flanker". "Series for decades.

NOTE: The structural dimensions and performance data shown on this page are the authors' estimates. Data will be updated as new information allows.

Specification

Basic

Year of Service

2026

Origins

Russia

Status

Under development

Program is running.

Crew

1

Production

0

Manufacturer

Sukhoi OKB / Rostek State Corporation (UAC) Russia

Carrier

Argentina (possible); Russia (possible); United Arab Emirates (possible); Vietnam (possible)

scrolling

air-to-air combat, fighter

The general ability to actively attack other aircraft of similar form and function, usually using guns, missiles and/or airborne missiles.

X-Plane (development, prototype, tech demo)

Aircraft designed for prototyping, technology demonstration, or research/data collection.

Notable Features

Radar Capability

Houses may house (via specialized variants) radars for searching, tracking, and attacking enemy elements.

Countermeasures

Onboard electronic or physical countermeasures taken by the aircraft or pilot/crew to enhance survivability.

wing sweep

The main plane or leading edge has retraction lines for improved high-speed performance and handling.

High-speed performance

Can accelerate to higher speeds than the average aircraft at the time.

High performance

The ability to fly and operate at higher altitudes than the average aircraft of the day.

Pilot/crew ejection system

Auxiliary procedures to allow pilot and/or crew ejection in the event of an air emergency.

Depression in crew members

Support the pressurization required for crew survival at higher operating altitudes.

Closed crew room

There are partially or fully enclosed crew work areas.

Scalable

Has retractable/retractable landing gear to maintain aerodynamic efficiency.

Dimensions and Weight

Length

49. 2 feet

(15.00m)

Width/span

32.8 feet

(10.00m)

Height

16.4 feet

(5.00m)

Cured weight

36,156 lbs

(16,400 kg)

MTOW

51,588 lbs

(23,400 kg)

Wgt Difference

+15,432 lbs

(+7,000 kg)

MAINPLANE STRUCTURE

single/middle/delta

Monoplane

Designed to use a single main wing main aircraft; this is the most popular arrangement of main aircraft.

Central Install

The main aircraft is mounted below the center on the sides of the fuselage.

bias

The plane takes the general shape of a triangle, where the leading edge is swept back for high-speed efficiency and the trailing edge is straight.

(Structure descriptor reference production variant Sukhoi Checkmate)

Performance

Installed:

1 x afterburner turbofan of unknown make, model and thrust.

Maximum speed

808 km/h

(1,300 km/h | 702 kn)

Maximum

59,055 feet

(18,000 m | 11 km)

Area

2,485 km

(4,000 km | 7,408 nautical miles)

rate of climb

70,000 ft/min

(21,336 m/min)

Range (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hypersonic: 7673-19180 | Reentry: > 19030

Armor

Unknown. Close range operations with an internal automatic cannon. Precision-guided bombs/munitions and Russian-origin air-to-air and air-to-surface missiles are also supported. Also accepted: External (possibly optional) mount points for additional air-launched/air-dropped munitions.
