Sukhoi Su-31

History

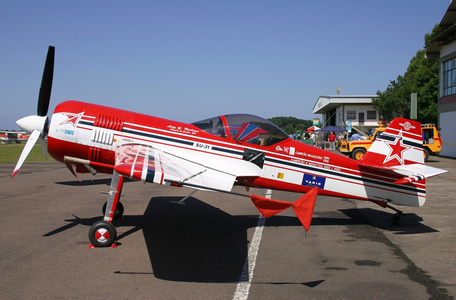

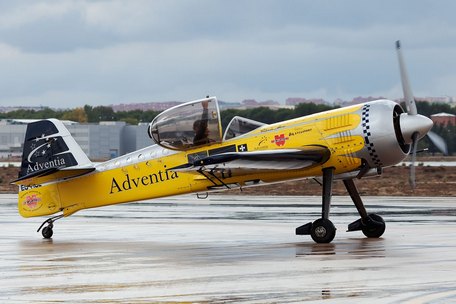

The Sukhoi Su-31 is a Russian single-engine, two-seat aerobatic aircraft designed by the Sukhoi Design Bureau. It has low wings and a retractable tricycle landing gear for easy maneuvering during takeoff and landing.

The aircraft's design also includes an all-metal construction, making it strong enough to withstand the rigors of aerobatics.

Specification

Base

Year of Service

1992

Origins

Russia

Status

Active.

Crew

1

Production

25

Manufacturer

Sukhoi - Russia

Operator

Russia

Dimensions and Weight

Length

22.5 feet

(6.85m)

Width/span

25.6 feet

(7.80m)

Height

9.0ft

(2.75m)

Cured weight

1,543 lbs

(700kg)

MTOW

2,315 lbs

(1,050 kg)

Wgt Difference

+772 lbs

(+350 kg)

Performance

Installed:

1 x Vedeneyev M14PF air-cooled radial piston engine producing 400 hp and driving a three-bladed propeller unit in the nose.

Maximum speed

280 km/h

(450 km/h | 243 knots)

Maximum

13,123 feet

(4,000 m | 2 mi)

Area

684 km

(1,100 km | 2,037 nautical miles)

rate of climb

4,725 ft/min

(1,440 m/min)

Range (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hypersonic: 7673-19180 | Reentry: > 19030

Armor

None.

VARIANTS

Su-31 - Name of the basic series; fixed chassis shape. Su-31T - Alternative designation. Su-29T - Su-29 based prototype; only example. Su-31M - Improved; integrated ejection system. Su-31M2 - 1999 improvement; main aircraft with enlarged wings; overall weight reduction for more power; revised hood design.

Su-31U - a proposed model based on the Su-31T with retractable landing gear. Su-31X - Export designation for Su-31T. Su-31ffX - Experimental model with changes to other performance data and features.
