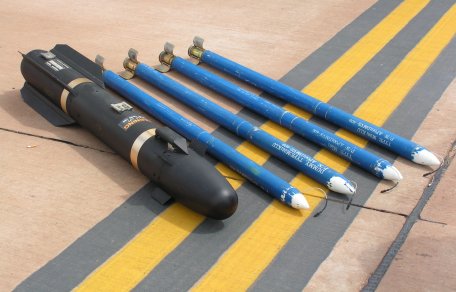

The General Dynamics Hydra-70 is an American family of 70 mm (2.75-inch) fin-stabilized aerial rockets. It is primarily an unguided air-to-surface weapon, although its modular design supports several warheads and guided derivatives.

The system combines an Mk 66 rocket motor, a selected warhead, and a compatible fuze. It can engage personnel, lightly protected equipment, point targets, and area targets or provide illumination, marking, and battlefield obscuration.

Hydra-70 rockets are carried by numerous rotary-wing and fixed-wing aircraft. They can also serve as the propulsion and warhead foundation for the laser-guided Advanced Precision Kill Weapon System, or APKWS.

Development

The Hydra-70 developed from the 70 mm Mk 4 and Mk 40 Folding-Fin Aerial Rocket family created by the United States Navy after the Second World War. The original weapon was conceived as an air-to-air rocket and was later adapted for air-to-surface missions. Its predecessors supported operations during the Korean and Vietnam wars from helicopters and fixed-wing aircraft.

The principal change that led to Hydra-70 was the Mk 66 motor. Earlier Mk 40 rockets used fins that folded forward and opened to the rear after launch. Hydra-70 introduced curved wrap-around fins that fit against the rocket body and unfold sideways after the rocket leaves its launch tube. Slightly angled motor nozzles spin the rocket during this transition and improve stability.

The Mk 66 Mod 0 prototype configuration was introduced in 1972, followed by the Mod 1 production version. The latest system configuration was fielded during the 1980s under the Hydra-70 name. Production of the electromagnetically safe Mod 2 began in 1986, while production of the multiservice Mod 4 began in 1999.

Production

General Dynamics Ordnance and Tactical Systems is the system integrator for the Hydra-70 family. According to the company's Hydra-70 product brochure, it had produced more than five million rockets since 1996 for the United States Army's Joint Attack Munition Systems Project Office.

In June 2010, the United States Army signed a four-year production contract with General Dynamics Armament and Technical Products. The estimated value was approximately $991.7 million. The Army reported that its fiscal year 2010 procurement comprised 399,904 items, including complete rockets, warheads, and motors. The contract and production background were described by the United States Army.

In 2026, the Army selected Firehawk, iRocket, Nammo Perry, and Albers under Other Transaction Authority agreements intended to broaden the Hydra-70 industrial base. Each supplier was tasked with producing 24 prototype M151 high-explosive warheads and delivering an updated technical data package within 18 months. General Dynamics remained the established serial supplier. Successful prototype work could lead to the companies producing other Hydra-70 warhead types.

Design

System architecture

A Hydra-70 round consists of three principal elements: an Mk 66 Mod 4 solid-propellant rocket motor, one of nine available warhead types, and a point-detonating or remotely set fuze. The modular arrangement allows components to be selected for a particular mission without replacing the underlying rocket family.

Warheads are offered in unitary, cargo, and training configurations. Supported effects include high explosive, flechettes, visible or infrared illumination, smoke, marking, and practice signatures. The M151 is a unitary high-explosive warhead intended for use against personnel and light materiel. The larger M229 provides another high-explosive option.

Propulsion and stabilization

The Mk 66 Mod 4 is a solid-propellant motor with four wrap-around stabilizing fins. The fins remain against the motor body while the round is inside its launch tube and deploy after launch. Canted exhaust nozzles impart spin before the fins have fully opened.

The Mod 4 introduced a salt rod intended to reduce visible exhaust gases and was configured for use across United States military services. Later Mod 5 and Mod 6 developments addressed propellant venting during rapid heating and the risk that secondary launch gases could ignite in the engine of the carrying aircraft.

Launchers and aircraft integration

Hydra-70 can be fired from existing seven-tube and 19-tube launchers. Referenced launcher types include the seven-round LAU-131/A and the 19-round LAU-61 and M261. The system's low mass permits several launchers to be carried on one aircraft.

Compatible platforms include the AH-64 Apache, AH-1 Cobra family, UH-1 Huey family, UH-60 Black Hawk, MH-6 Little Bird, A-10 Thunderbolt II, AV-8B Harrier II, F-16 Fighting Falcon, and F/A-18 Hornet. The precise launcher, warhead, fuze, and fire-control arrangement depends on the aircraft and service.

Guided application

Hydra-70 components are compatible with APKWS. This system adds a laser-guidance section to provide precision against point targets while retaining the 70 mm rocket motor and a compatible warhead. The resulting guided weapon must not be confused with a standard unguided Hydra-70 round.

Operational history

The Hydra-70 configuration entered service during the 1980s. It became a widely used helicopter-launched weapon and was also integrated with several fixed-wing aircraft. The system has been employed for air-to-ground suppression, attacks on personnel and materiel, illumination, marking, and obscuration.

United States Army reporting states that the 70 mm rocket family contributed to operations in Iraq and Afghanistan. Annual procurement quantities have varied according to operational demand, training requirements, and the selected mixture of motors, warheads, fuzes, and complete rounds.

Variants

Mk 66 rocket motors

• Mk 66 Mod 0: Original 70 mm wrap-around-fin universal motor prototype for the United States Army, introduced in 1972.
• Mk 66 Mod 1: Initial Army production version derived from the Mod 0.
• Mk 66 Mod 2: Version designed for safety in electromagnetic-radiation environments for the United States Navy and Air Force. Production began in 1986.
• Mk 66 Mod 3: United States Army counterpart to the electromagnetically safe Mod 2.
• Mk 66 Mod 4: Multiservice development of the Mod 2 and Mod 3 with measures intended to reduce exhaust gases. Production began in 1999.
• Mk 66 Mod 5: Development of the Mod 4 incorporating propellant venting during rapid heating.
• Mk 66 Mod 6: Development intended to reduce the possibility that secondary launch gases could combust in the carrying aircraft's engine, particularly on the AH-64.

Selected warheads

• M151: High-explosive unitary warhead.
• M229: Larger high-explosive warhead.
• M255A1: Flechette cargo warhead.
• M156: White-phosphorus warhead.
• M257 and M278: Visible and infrared illuminating flare configurations.
• M264: Red-phosphorus smoke warhead.
• M274 and WTU-1/B: Practice configurations.

Operators

• United States Army: Principal service customer and program authority for current Hydra-70 production.
• United States Navy: Uses compatible versions of the Mk 66 motor and 70 mm rocket family.
• United States Air Force: Uses the rocket family on compatible fixed-wing aircraft, including the F-16.
• United States Marine Corps: Uses 70 mm rockets on aircraft including members of the AH-1 and UH-1 families.

Specifications (Mk 66 Mod 4 motor with M151 warhead)

Motor

• Type: Solid-propellant wrap-around-fin rocket motor
• Designation: Mk 66 Mod 4
• Length: 1.06 m (41.7 in)
• Diameter: 70 mm (2.75 in)
• Weight: 6.2 kg (13.6 lb)

Performance

• Average thrust at 25°C: 6.29 kN (1,415 lbf)
• Total impulse at 25°C: 6.74 kN·s
• Burning time at 25°C: 1.07 seconds
• Operational temperature range: −46°C to 66°C (−50°F to 150°F)
• Storage temperature range: −54°C to 71°C (−65°F to 160°F)

M151 high-explosive warhead

• Length with fuze: 412 mm (16.2 in)
• Weight: 4.2 kg (9.3 lb)

Related equipment

• Mk 4 and Mk 40 FFAR: Earlier United States 70 mm folding-fin aerial rockets from which Hydra-70 was developed.
• APKWS: Laser-guidance system that converts compatible 70 mm rocket components into a precision-guided weapon.
