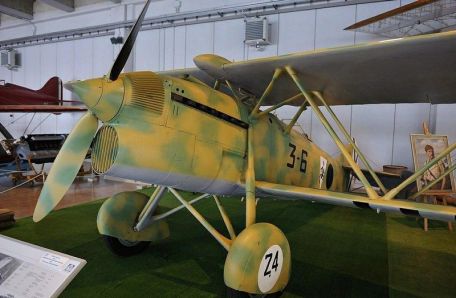

Fiat Cr.32

1938 WORLD WAR 2

History

Italian Fiat CR. During the interwar period, and especially in the 1930s, the 32 biplane was widely regarded as one of the best in its class. cr. The design of the 32 is based on the previous CR. 30 of 176 aircraft serve global operators including Italy, Paraguay and Spain.

From this frame, a smaller form was machined into a viable launch platform with good maneuverability and excellent field survivability.

A biplane wing arrangement was used, and the aircraft was flown by an operator who sat in an open-air cockpit under the upper wings and aft (near the midship). The upper and lower wings (unequal span) are connected by parallel struts and cables common to fighter designs of the period. The landing gear is in a trailing configuration, although the main wheels are spit out for aerodynamics. The stern is a single rudder design.

In the front of the fuselage (directly in front of the pilot's position) was the engine mount, which drove a twin-blade propeller unit in the nose. Armament consists of 2 x 7.7mm Breda SAFAT machine guns, fired synchronously via rotating propeller blades, although larger caliber 12.7mm machine guns could be used in their place.

Can also carry a modest bomb load of up to 220 pounds for ground attack. Inside, a metal substructure is used, while the skin is a mix of alloy and fabric covering.

Dimensions include a length of 24.5 feet, a wingspan of 31.2 feet, and a height of 7.8 feet. The kerb weight is 3,210 pounds and the MTOW is 4,350 pounds.

Power is provided by a 600 hp Fiat A30 RA-bis V12 engine. Top speed is 225 mph, range is up to 485 miles, and service is capped at 28,870 feet. The climb rate was close to 1,822 feet per minute.

The first flight in prototype form was recorded on 28 April 1933. China is the first global operator to commit to this type through the top 24 orders. These arrived in 1935, although the order ended up with only nine fighters. From March 1934 to February 1936, the Italian Air Force was the proud recipient of this indigenous product, recording 282 aircraft.

Almost immediately, pilots appreciated the small fighter's capabilities, and its impact on flight service was widely publicized. Before starting combat service, CR. 32 is a favorite of the many air shows she has participated in.

Spain managed to obtain a license for the local production of Italian machines, resulting in the production of 100 HA-132-L "Chirri" fighters. These were put into service during the Spanish Civil War (1936-1939) in 1938. The Italians have deployed their CR.

A total of 32 fighters have been in conflict since August 1936, the first combat preview of the series.

The improved A30 RAbis engine rated at 600 hp welcomes the likewise improved CR. The 32bis variant was delivered to the Italian Air Force as part of 283 orders. The armament is a mix of 2 x 7.7mm and 2 x 12.7mm machine guns, giving the nimble fighter better offensive strikes.

Forty-five copies of the standard were sold to Austria and another 52 were entrusted to Hungary, although only 38 were delivered to customers.

One hundred and fifty CRs left. 32 fighters are implemented as CR. 32nd in 1937, carrying only 2 x 12.7mm machine guns, but with improved cockpit fairing and sights. cr.

The 32quater (based on the CR.32ter) counted 337 production units for the Italian Air Force, but was also sold to Paraguay and Guatemala. This version was also manufactured locally in Spain between 1940 and 1943, 40 of which were modified as two-seat training platforms.

The main change is a new lightweight design that now adds a communication kit.

cr. The 33 formed three prototypes with the Fiat AC. 33RC engine. Top speed was increased to 256 mph, but the model wasn't used for mass production.

cr. The 40 was a one-off prototype with a Bristol Mercury IV air-cooled radial piston engine. The same goes for CR. 40bis is a single prototype and CR. It was followed by 41 - neither of which was adopted.

Total CR. Production of 32 fighters reached 1,052, and their end was just around the corner. By the time of World War II in 1939, it had been more or less eliminated by modern inventions, but Italian authorities still believed in the merits of the CR.

32 Even against more modern types, when the war broke out, biplanes accounted for more than half of the number of fighters available to the Italians. As such, these aging biplanes were encountered in the early stages of the North African campaign conflict and in the airspace of the Italian mainland - certainly until 1940, when the fighters still performed well against more modern thoroughbreds.

Additional combat action was seen over Greece, but by 1942 the line was all but marked for decommissioning. Night operations are the last to be taken over by the production line. The Spanish Air Force did not withdraw it until 1953.

Global operators other than the above are Austria, China and Nazi Germany. The Austrians are committed to a CR of 45. 32bis, which the Chinese deployed under the banner of the Kuomintang Air Force. German specimens were taken over from Austrian stocks.

Fiat CR. The 1939 42 biplane (described in detail elsewhere on this page) was born out of the same design.
