SdKfz 234 (Puma)

History

The SdKfz 234 (commonly known as "Puma") was the primary eight-wheeled armed reconnaissance platform used by the German Army during World War II. The adaptable hull creates a fast-moving, powerful weapon. However, the vehicle was lightly armored and produced in limited quantities, making it difficult to adapt to the ever-changing German doctrine of tank warfare - which now has confidence in the effectiveness of self-propelled guns and heavy tanks.

Regardless, the Puma proved to be a groundbreaking design that would influence the design of similar eight-wheeled military platforms for decades to come.

Early German campaigns proved the effectiveness of the SdKfz 231 family of eight-wheeled armoured vehicles, despite the lack of viable off-road performance of this family of vehicles to keep up with Blitz action. In addition, their engines were very irritable, often causing the thrusters to overheat, and the armor protection of the crew was questionable at best. These early vehicles were also largely derived from commercial vehicles built around civilian frames, with their military components added to the chassis as needed. In August 1940, German authorities announced a plan to create a new generation of 8-wheeled combat vehicles (they called them "8 Rad") to replace the SdKfz 231, SdKfz 232 and SdKfz 233 vehicles in production.

Work on the logical successor, the SdKfz 234, began soon after.

Compared to previous German armored vehicles, the SdKfz 234 was designed from the outset as a military vehicle - production should be geared towards tanks rather than armored vehicles. It is made of an armored monocoque hull with no underlying frame, which means the military components will be attached directly to the hull itself. The main part of the hull is made of armor plate, while the side lockers and fenders are made of thin sheet metal.

The Czechoslovakian company Tatra was tasked with developing the necessary powerplant for the new machine and responded with their Tatra 12-cylinder 220 hp air-cooled diesel engine. The air-cooled quality performs well in most types of severe weather conditions because it doesn't require a flimsy cooling system.

Large internal fuel tanks ensure excellent range - no doubt, given the vast African desert and the upcoming battlefields of Eastern Russia.

Like the SdKfz 231 before it, the SdKfz 234 is equipped with eight sturdy independent wheels. An open-roofed, manually operated, six-sided turret with sloping fairing was attached to the front hull, providing 360-degree traversal and height. Supplied with a 20mm (2cm) KwK 38 cannon and coaxially mounted 7.92mm MG42 general purpose machine gun as primary armament. The entire vehicle is loaded with approximately 250 rounds of 20mm rounds, supported by 2,400 rounds of 7.92mm rounds.

This gives the SdKfz 234 "sufficient" firepower to handle infantry and lightly armored vehicles. Essentially, the SdKfz 234 is primarily a reconnaissance vehicle - it's not a strong suit against enemy tanks, and its best defense is still its high speed.

Bussing-NAG, already demonstrating their experience in multiple rounds of creation, was selected as the general contractor and awarded the procurement contract in August 1940. A prototype appeared in July 1941.

After completing the prototype evaluation, it was determined that the Tatra engine was too noisy to be comfortable. As the German Army focused on the development and production of tanks and assault guns to turn around their North African campaign, the design team was sent back to work, while also borrowing some time.

Development was so rapid that the SdKfz 234 did not roll off the assembly line until 1943, and mass deliveries did not begin until 1944.

The SdKfz 234 was piloted by four people, including the driver, commander, loader and gunner. The driver occupies the position of the hull superstructure, while the commander and gunner occupy the position of the turret. The commander is on the left, the gunner is on the right.

Added a screen above the spire to prevent grenade attacks from enemy infantry. There is a pistol port on the rear of the turret for knocking back enemies approaching from a blind spot. The design is traditional, with the driver in the forward fuselage and the engine in the stern compartment.

The hull fairings are heavily angled and are designed to deflect or deflect projectiles (although the range is limited to small arms firing). This makes the vehicle's operating weight relatively light and the occupant relatively safe. Large wheels are set to four on one side of the vehicle, and each unit has no side armour protection, although overhanging fenders serve as storage compartments.

The glacier panels are well raked, as is the cabin deck aft. The armor protection is the thickest at 30mm in the front and just 8mm in the sides. Ground clearance is very impressive, especially at the centerline.

It should be noted that only some of the SdKfz 234 produced are actually equipped with a car radio. The first production models featured a Tatra 102-series engine, while later models featured the Tatra 103 V-12, an air-cooled diesel unit that produced 220 hp at 2,250 rpm.

Drum mufflers are mounted on the rear end of each fender to exhaust each row of the 12-cylinder powerplant.

The SdKfz 234 weighs 11.5 tons. The system has an internal fuel capacity of 360 liters and provides a range of up to 620 miles on the road and 372 miles off-road.

In terms of dimensions, the SdKfz 234 has a barrel length of 5.86 meters, a width of 2.33 meters and a height to the top of the tower of 2.10 meters. Top speed is quoted near 50 mph.

All of these specs culminated in a vehicle that was well ahead of its time - unlike anything the Allies could use at the time in the war.

Although it was expected that the base SdKfz 234/1 would be armed with a 20mm KwK 38 series anti-tank gun, it was decided to formally switch to the 50mm (5cm) KwK 39/1 L/60 before that. The KwK 39 was equipped with the same equipment as the Panzer III medium tanks that were later produced, and for a time proved to be an effective tank killer.

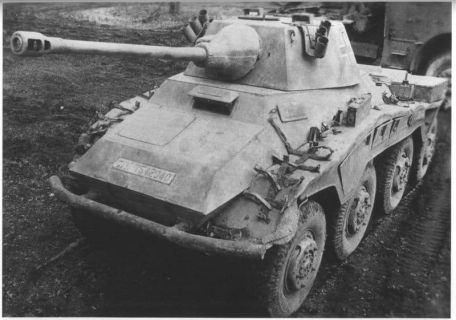

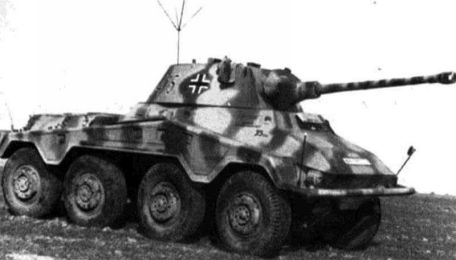

The car subsequently underwent a minor name change from SdKfz 234/1 to SdKfz 234/2, the new model was distinguished by its longer baffled main barrel and a 100mm thick " Pig's Head" turret fairing. Production began in December 1943 and was completed in June 1944 with 100 units delivered.

In practice, the SdKfz 234/2 Puma proved itself to be a combat-ready armed reconnaissance vehicle. With its improved frontal armor and powerful main gun, it can penetrate volatile areas usually reserved for other like-minded vehicles deployed early in the war. These vehicles were often excessively worn, but proved absolutely invaluable to advancing army formations.

The off-road capability of the SdKfz 234 is evident, as is its improved primary weapon and speed. Production of the SdKfz 234 can also be completed fairly quickly and provides a relatively low battlefield profile. Their design also allows the vehicle to go backwards as fast as it goes forward.

Such was their value that several SdKfz 234s captured by the Allies were sent back to their respective home countries for extensive evaluation and testing. Their influence is clearly seen in the subsequent development of the eight-wheeled light tank during the Cold War.

SdKfz 234/3 "Schwerer Panzerspahwagen" later appeared in the Wehrmacht's initiative to upgrade its eight-wheeled reconnaissance fleet. This also brings an update to the 7.5cm Panzerabwehrkanone 37 in the 75mm KwK 51-L/24 slow gun.

The SdKfz 234 chassis was fitted with this gun as the main weapon, providing improved fire support for the German formations. The hull design is similar to the SdKfz 234/1, although the SdKfz 234/3 eliminates the handheld turret and instead deploys a static open fighting compartment to accommodate the commander, loader, gunner and weapons.

This armature is suitable for tight operating spaces, but the SdKfz 234/3 is only slightly larger than the previous model, the SdKfz 234/1. The cab is lowered slightly in the forward fuselage.

To defend against enemy infantry attacks, light vehicles and low-flying aircraft, the SdKfz 234/3 is equipped with a 7.92mm MG42 as a secondary weapon, operated by a turret group.

In practice, the SdKfz 234/3 once again showed the limits of its armor protection, but its main gun armament proved to be a formidable opponent. However, since the SdKfz 234/3 had a fixed superstructure instead of a turret, the yaw of the gun was limited to 20 degrees left and right. This usually means repositioning the entire vehicle outside of that range for targeted engagement - hardly good practice in the heat of battle.

Production of the SdKfz 234/3 began in April 1944 and ended in December, when attention had shifted to the SdKfz 234/4 and its powerful Pak 40 main gun.

The SdKfz 234/4 is the last evolution of the SdKfz 234 series. Equipped with a powerful 75mm (7.5cm) PaK 40 anti-tank gun, the vehicle was well equipped to deal with the dangers of the modern battlefield - essentially a desperate attempt by the Germans to mass produce a viable tank destroyer. However, the PaK 40 proved to be a large weapon mounted on the narrow chassis of the SdKfz 234/4, and its inherent violent recoil pushed the fuselage and wheels to their structural limits. Nonetheless, at the behest of Adolf Hitler himself, the "upgrade" program continued as planned.

The SdKfz 234/4 was equipped with a modified fixed superstructure to make room for the PaK 40 L/46 gun. As with the towed version, the lateral direction was limited, and the front gun shrouds were modified to have a smaller area to clear the superstructure.

Like most postwar German developments, the SdKfz 234/4 entered production in December 1944. Once deployed, this stopgap usually shows adverse results in terms of construction and reasonable development time.

In the end, only 100 of these vehicles were in use before Germany's surrender in May 1945, and their effectiveness was never fully proven.

About 2,300 SdKfz 234 models were eventually produced before the end of the war. At its peak, production reached 100 per month.
