SpaceX Falcon Heavy

History

SpaceX Falcon Heavy is a heavy-lift orbital launch vehicle developed from the Falcon 9 architecture. Its first stage combines three cores, while a single upper stage places payloads into Earth orbit or sends them toward more distant destinations.

The vehicle made its first flight in 2018 and subsequently entered commercial, U.S. national security, and NASA service. Falcon Heavy combines high payload capacity with recovery and reuse of first-stage boosters when mission requirements permit.

By August 2026, Falcon Heavy had completed 13 launches. Its missions included NASA's Psyche, Europa Clipper, and Nancy Grace Roman Space Telescope spacecraft.

Development and first flight

Early concepts for a multi-core heavy launcher appeared during SpaceX's early launch-vehicle development. A three-core Falcon 1 concept was discussed by 2003, while a Falcon 9 Heavy concept was identified in 2005. SpaceX publicly announced plans for Falcon Heavy in April 2011, initially expecting a test flight in 2013.

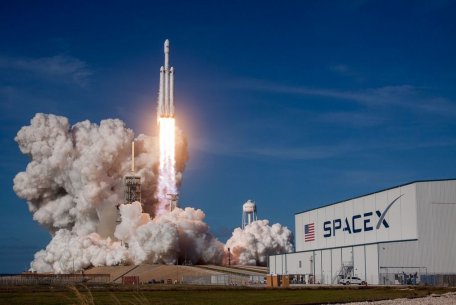

The maiden flight was delayed as SpaceX addressed Falcon 9 launch anomalies and the engineering challenges associated with integrating three Falcon-derived cores. Falcon Heavy finally lifted off from Launch Complex 39A at NASA's Kennedy Space Center on February 6, 2018. The demonstration payload was a Tesla Roadster. NASA described the flight as the successful introduction of a new launch vehicle at Kennedy's multi-user spaceport in its Falcon Heavy launch report.

The second Falcon Heavy mission launched the Arabsat-6A communications satellite on April 11, 2019. All three first-stage cores returned to Earth after that launch. A third mission followed on June 25, 2019, and Falcon Heavy was subsequently certified for the U.S. National Security Space Launch program.

NASA missions

Falcon Heavy launched NASA's Psyche asteroid mission in October 2023. On October 14, 2024, another Falcon Heavy launched NASA's Europa Clipper mission toward Jupiter.

On August 30, 2026, Falcon Heavy launched NASA's Nancy Grace Roman Space Telescope from Launch Complex 39A at 7:26 a.m. Eastern time. The spacecraft separated from the upper stage about 31 minutes after liftoff. The mission was Falcon Heavy's 13th launch and its third NASA mission. The two side boosters returned to separate landing pads at Cape Canaveral Space Force Station, while the center core was expended. The launch and mission sequence were reported by SpaceNews, while NASA documented the booster separation and return sequence in its Roman mission update.

Design

Falcon Heavy uses three first-stage cores arranged side by side. The center core is connected to two side boosters at the nosecone, interstage, and engine-section structures. Each core uses nine Merlin engines, giving the first stage a total of 27 engines.

Shortly after liftoff, the center-core engines are throttled down while the side boosters continue operating. After the side boosters separate, the center core returns to full thrust. This operating sequence extends the useful burn duration of the center core.

Falcon Heavy draws heavily on Falcon 9 technology. SpaceX states that this common design reduces the number of stage-separation events and supports reliability through the use of established hardware and production methods. Current manufacturer specifications are published on the SpaceX Falcon Heavy page.

Propulsion

The Merlin engine family uses liquid oxygen and rocket-grade kerosene, designated RP-1, in a gas-generator cycle. Falcon Heavy's three first-stage cores use sea-level Merlin engines. The second stage uses one Merlin Vacuum engine.

SpaceX lists the second-stage Merlin Vacuum engine at 981 kN of thrust with a nominal burn time of 397 seconds. The upper stage performs the orbital insertion and, when required, subsequent burns needed to place payloads onto higher-energy trajectories.

Recovery systems

Falcon Heavy can recover first-stage hardware when the required mission performance allows it. Each recoverable booster uses four grid fins for atmospheric control and four deployable landing legs. The side boosters can return toward the launch area, while a recoverable center core can be directed toward an offshore landing platform.

Recovery is not required for every mission. Boosters or the center core can be expended when additional performance is needed. The August 2026 Roman mission, for example, recovered both side boosters but expended the center core.

Interstage and payload fairing

The interstage connects the center core to the second stage and contains the stage release and separation system. SpaceX describes it as a composite structure.

The payload fairing is made from carbon-composite material and protects spacecraft during atmospheric ascent. It is 13.1 m high and 5.2 m in diameter. SpaceX also recovers fairing hardware for reuse on later missions.

Operational history

Falcon Heavy has been used for commercial satellites, U.S. government payloads, and high-energy NASA science missions. Its payload capability allows missions to low Earth orbit, geostationary transfer orbit, and interplanetary trajectories.

The vehicle's operational configuration varies according to payload mass, required trajectory, and recovery objectives. Missions can recover first-stage boosters or expend hardware to make additional launch performance available to the payload.

The 2026 Roman Space Telescope launch demonstrated a configuration in which the side boosters returned to land while the center core was expended. NASA reported that the side boosters shut down about 2 minutes and 24 seconds after liftoff, separated seconds later, and began their return sequence. The center core continued powering the upper stage and spacecraft toward their required trajectory.

Specifications (Falcon Heavy)

General characteristics

• Manufacturer: SpaceX
• Type: Heavy-lift orbital launch vehicle
• Height: 70 m (229.6 ft)
• Width: 12.2 m (39.9 ft)
• Launch mass: 1,420,788 kg (3,125,735 lb)
• First-stage cores: Three
• First-stage engines: 27 Merlin engines, nine per core
• Propellant: Liquid oxygen and RP-1
• Second-stage engines: One Merlin Vacuum engine
• Second-stage thrust: 981 kN (220,500 lbf)
• Second-stage burn time: 397 seconds
• Payload fairing height: 13.1 m (43 ft)
• Payload fairing diameter: 5.2 m (17.1 ft)

Payload capability

• Payload to low Earth orbit: 63,800 kg (140,660 lb)
• Payload to geostationary transfer orbit: 26,700 kg (58,860 lb)
• Payload toward Mars: 16,800 kg (37,040 lb)

Related equipment

• SpaceX Falcon 9: Launch vehicle whose architecture, propulsion, manufacturing methods, and stages form the technical basis of Falcon Heavy.
• SpaceX Starship: SpaceX super-heavy-lift launch system expected to succeed Falcon Heavy for some high-capacity missions.
